Ulta bright screen with excellent image quality

With the super 3000 nits brightness, you may not even need sun hood when shooting under strong daylight. Plus all T7 monitors are calibrated before shipping and have full manual calibration controls

built in software for user adjustment.

• 7 inch display
• 3000 nits
• 1920×1200 resolution
• contrastratio 1200:1
• 16,7 milion colors
• viewing angle: 160 degrees

Accurate video assisting tools

T7 has a full set of image assisting tools to help you nailing framing, exposure, focus and audio. It also supports realtime LUT preview for shooting LOG, you can add your favorite custom LUT via SD card.

• built-in 3D LUTs
• false color
• focus assit
• anamorphic
• image re-size
• upload LUTs bij SD Card

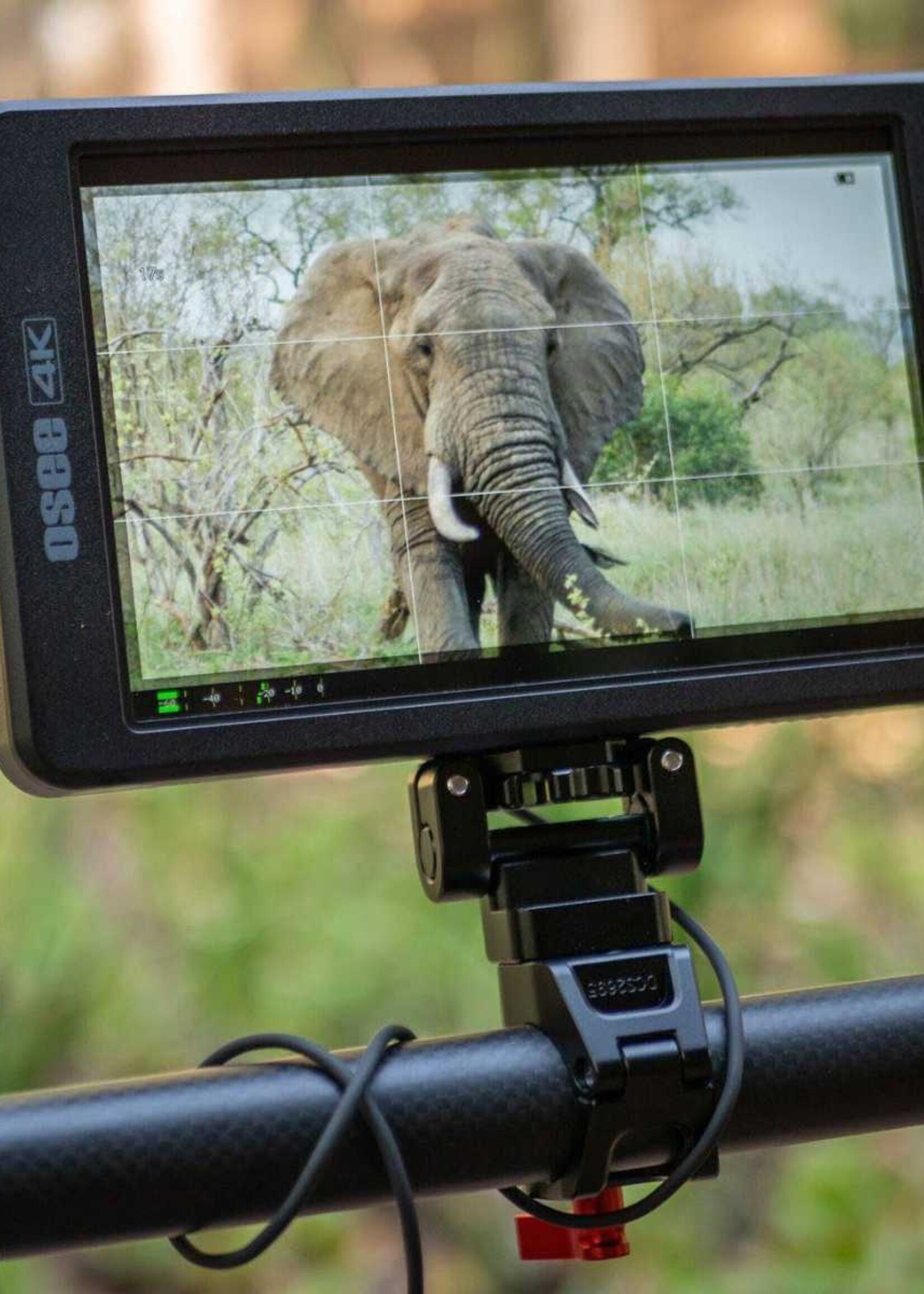

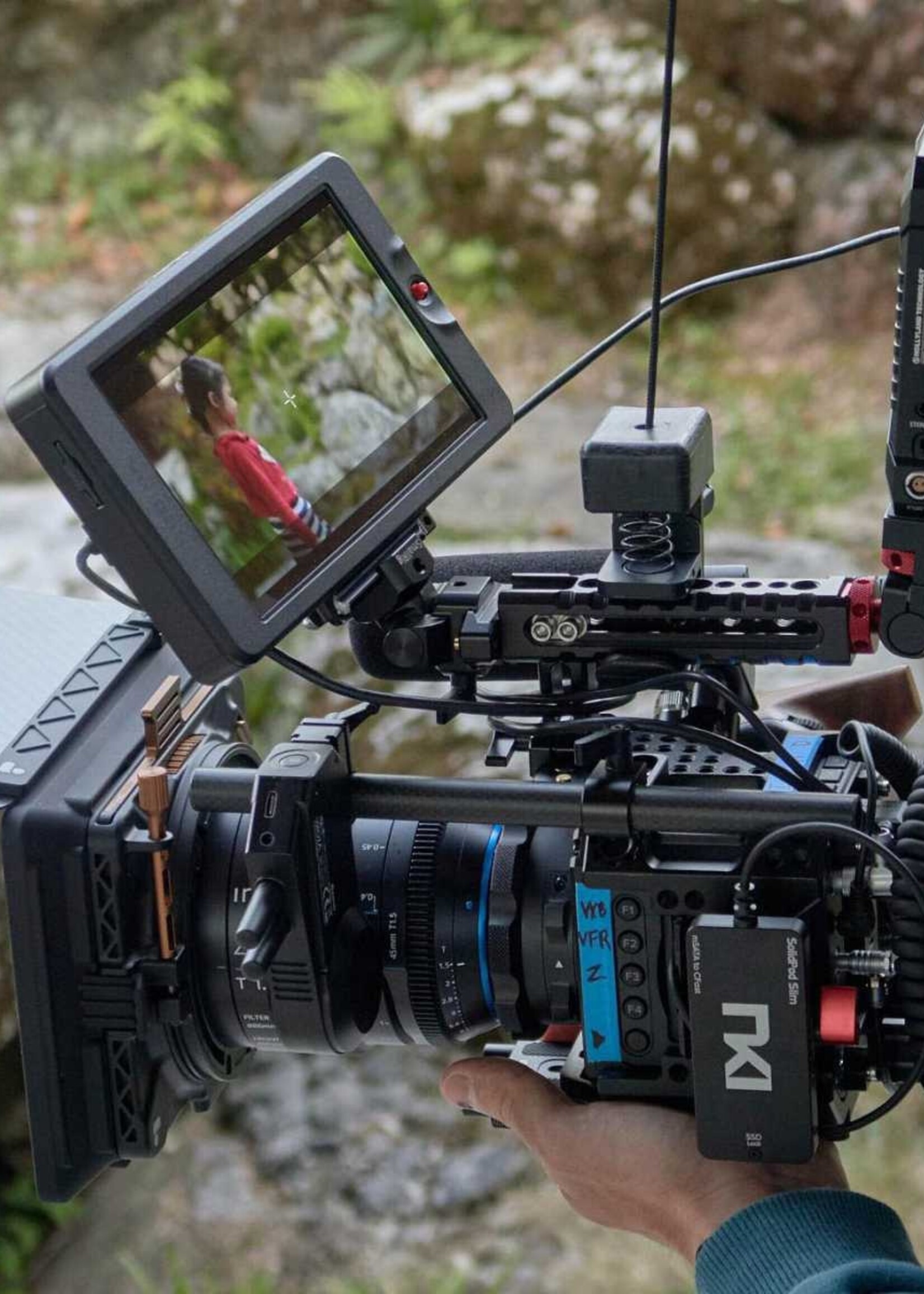

Great portability and sturdiness

7 inch is the best solution for satisfying the need for portability and detail viewing. T7 weighs only 438g without battery, reducing the overall burden for your camera setup. Meanwhile, with a built-in aluminum sheet and metal screw holes, it’s also steady and robust enough for varied on set environment.

Flexible power solution

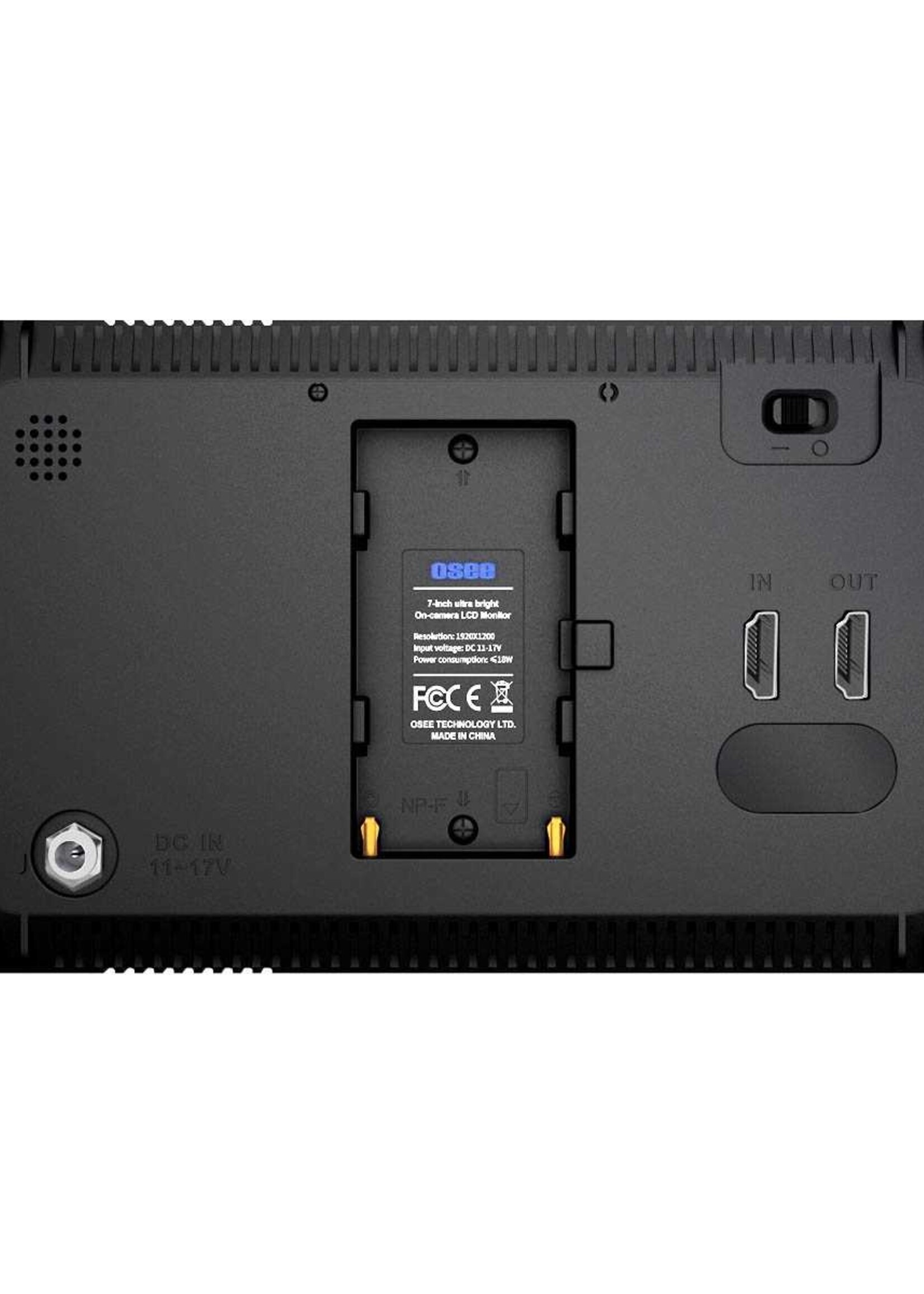

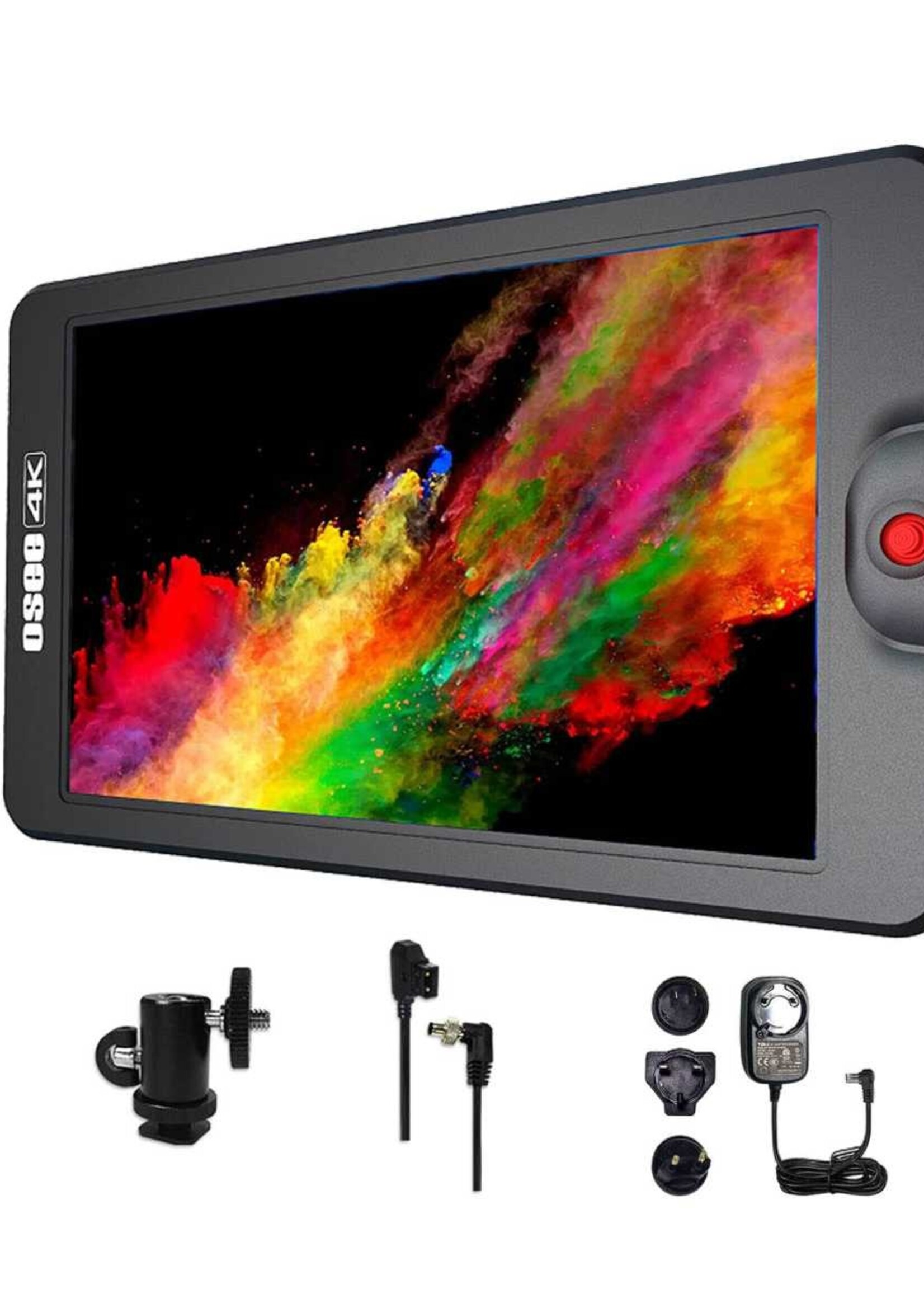

T7 has both Sony NP-F battery slot and DC in port, with the AC to DC power adaptor and D-tap to lockable pole DC cable, you can power T7 through small/large capacity battery and AC power.

Convenient and clean operation

T7’s scene style Ul allows user building up to 8 scenes containing different tools for various monitoring situation, after presetting these scenes, all you need to do on set is switching scenes. T7 uses one single joystick to navigate through menus, so you will have a clean screen, no need to constantly wiping fingerprints anymore.

HARDWARE

MONITOR

Body Weight(Bare Monitor): 438g

Dimensions(W x H X D): 192.0mm×116.3mm×24.7mm

Mounting Points: 1/4’’ Thread Points (1*Top&1*Bottom)

Fan: Fan speed adjustable

DISPLAY

Panel Size: 7inch

Resolution: 1920X1200

Aspect Ratio: 16:10

Color Depth: 1.06G

Brightness: 3000nits

Contrast: 1200:1

Anamorphic De-squeeze: 1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG

DSLR Scale: Canon 5D Mark 2, Canon 7D

Zoom: 2x, 4x Zoom and Pan

Screen Rotate Auto/0°/180°

POWER

Input Voltage: DC IN 11-17V, Battery 6-8.4V

Battery Plate: SONY NP-F

Power Consumption: 16.2W

DATA I/O

SD Card Slot: 3D LUTs upload and Firmware Upgrade (SD card under 16G and formatted to FAT32 is recommended)

Input/Output Signal

• HDMI In:
• 1 x HDMI(1.4)
• Signal Format:
• 3840x2160p(30/29.97/25/24/23.98)
• 1080p(60/59.94/50/30/29.97/25/24/23.98)
• 1080i(60/59.94/50)
• 720p(60/59.94/50)
• 480i/576i/480p/576p

Audio: Speaker&3.5mm Headphone Jack

SOFTWARE

CONTROL

Volume: Level 0-31 Adjustable

Backlight Level 0-10 Adjustable

Display Rotate: Screen Rotate Auto/0/180& Image Rotate 0/180

Anamorphic: 1*/1.33*/1.5*/1.66*/2*/2*MAG

DSLR Scale: None/CANON 5D MARK II/CANON 7D

FRAME TOOLS

Aspect: 4:3/1.85:1/2.39:1/16:9/Custom Ratio, Matte/Line Mode

Safe: 16:9 / 14:9 / 4:3, Action&Title Selectable

Center: On/Off

CrossHatch: 2×2, 3×3 … 9×9

EXPOSURE TOOLS

False Color: 17 Curves

Zebra: Level 1-100 Adjustable

Waveform: LUMA/RGB/Parade Mode, Size&Location&Opacity Adjustable

Vector Scope: Location&Opacity Adjustable

FOCUS TOOLS

Focus Assist: White/Red/Green/Blue Mode, B&W Background, Sensitivity Level 1-10 Adjustable

Peaking: Intensity Level 0-10 Adjustable

LOOK TOOLS

Look: Built-in 33 De-log 3D LUTs/Support 16 User 3DLUTs Import by SD Card

Audio Meter: Location&Opacity Adjustable

SCALE TOOL

Image Scale: Location Adjustable
