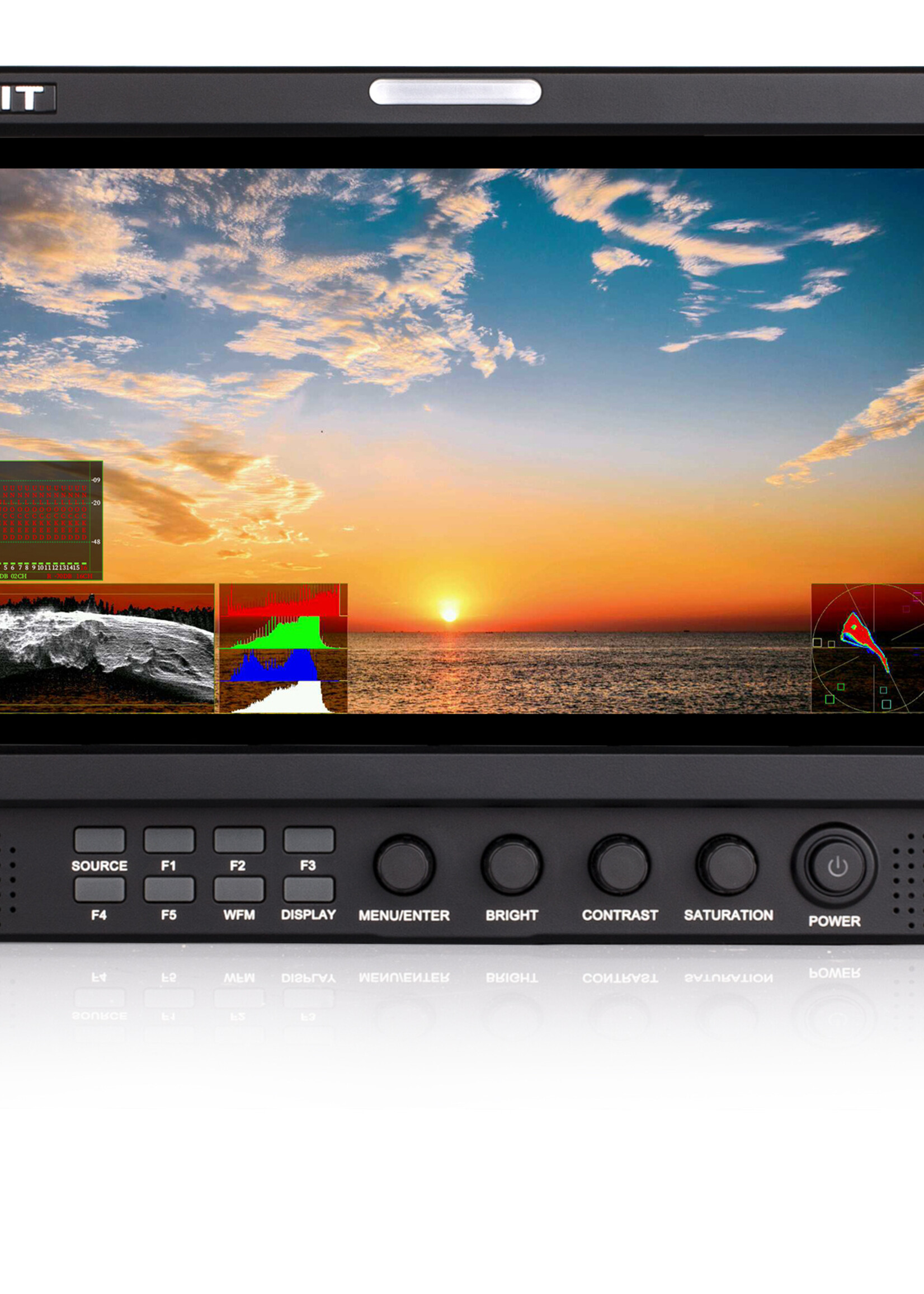

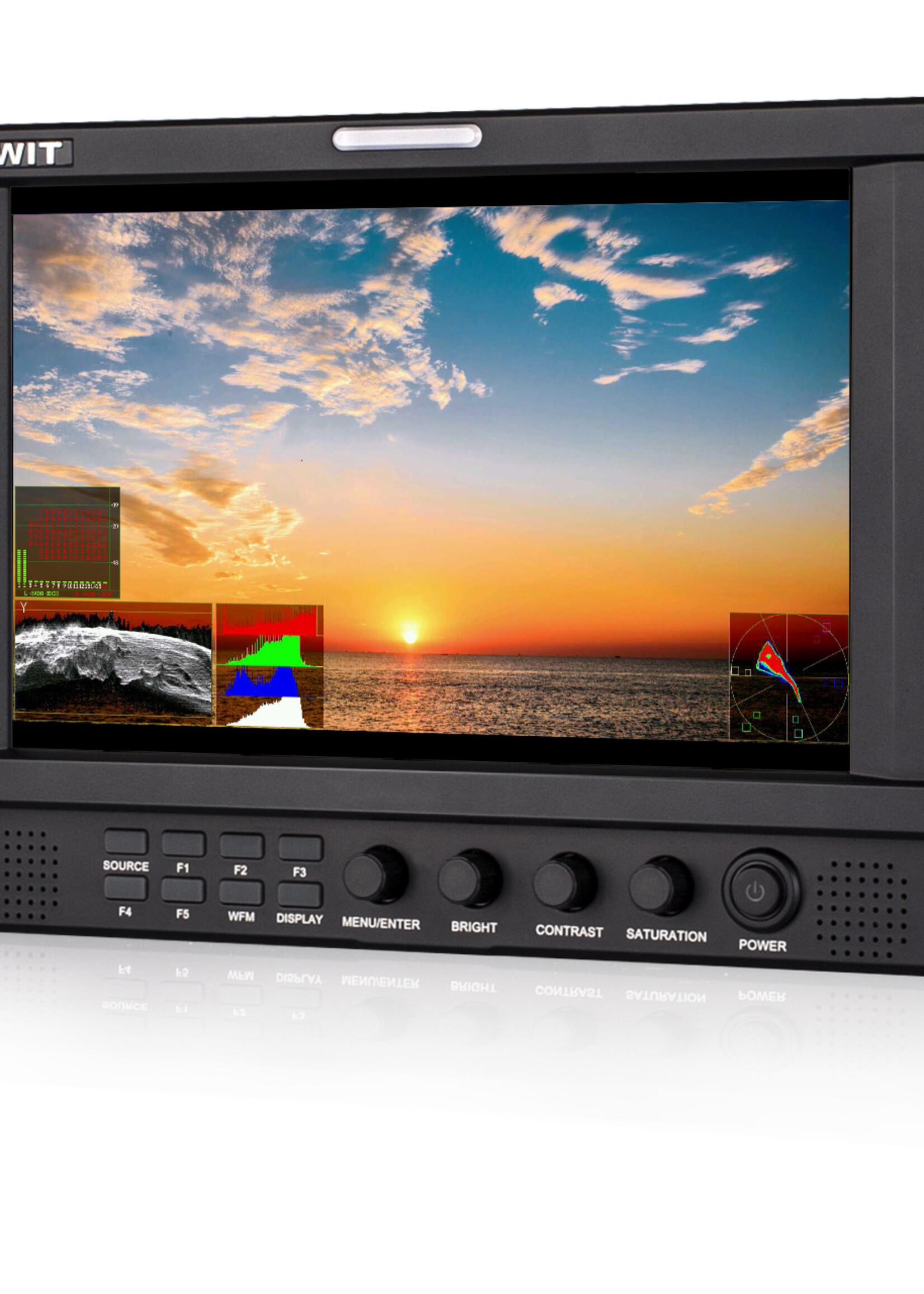

S-1093F 9-inch Full HD Reference LCD Monitor

› 9” IPS LCD, 1920×1200, H/V 170°viewing
› Build-in LCD protective glass
› 2K/3G/HD/SD-SDI, HDMI®, CVBS monitoring
› 16-ch Embedded audio meters with alert
› Select any 2 audio channels to output
› Waveform Y/Cb/Cr/R/G/B and single line
› Vector scope, histogram R/G/B/Y
› AFD, H/V delay, R/G/B/Mono, False color
› TSL UMD and text TALLY display
› Zebra stripes, Peaking focus assist
› SDI timecode display
› Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

LCD Performance

Size	9 inches
Display area	191.52×119.70mm
Resolution	1920×1200
Aspect ratio	16:9 (4:3 adjustable)
Brightness	450cd/m2
Contrast	1000:1
Color	16.77 million colors
Viewing angle	Horizontal: 170°; Vertical: 170°

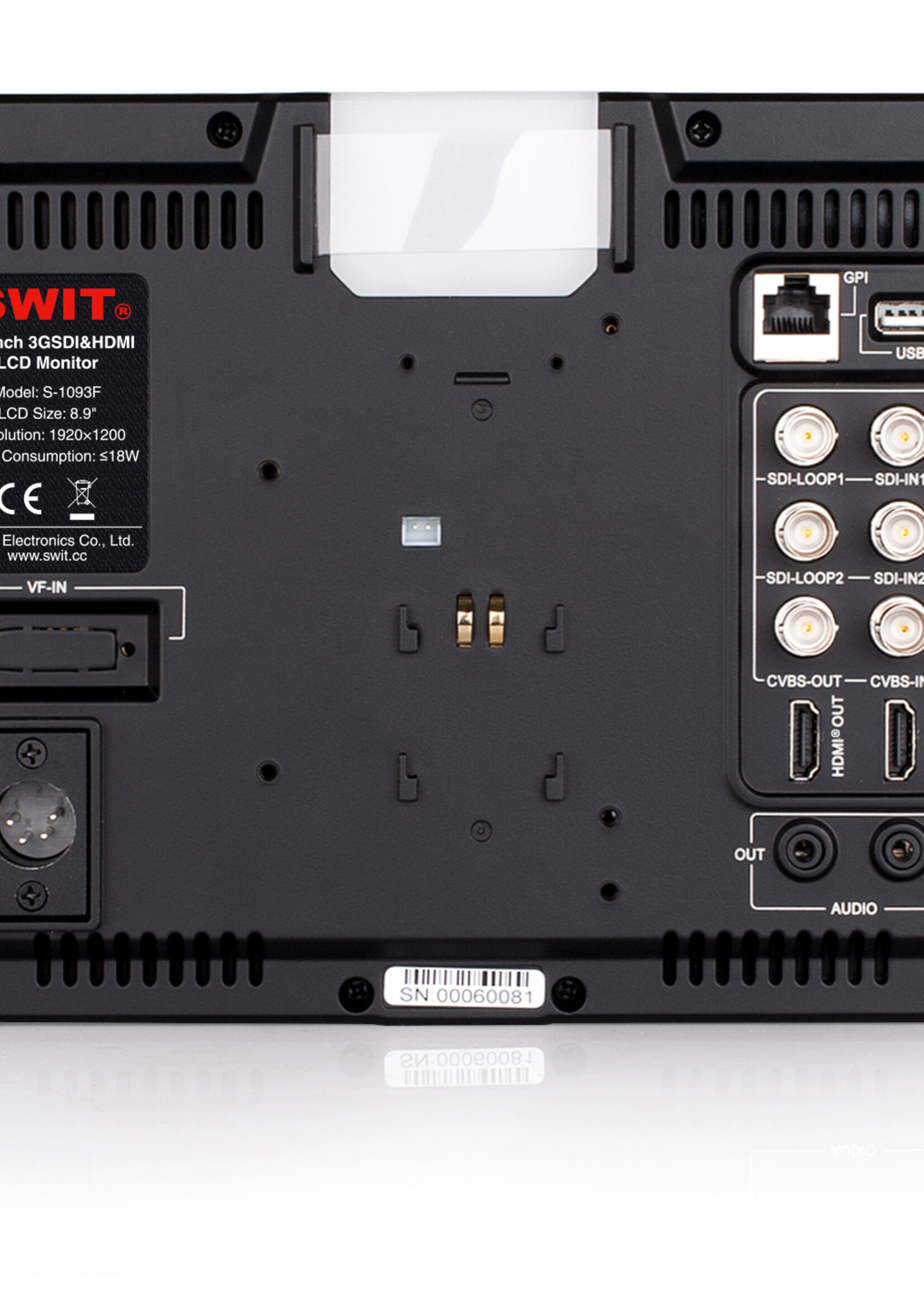

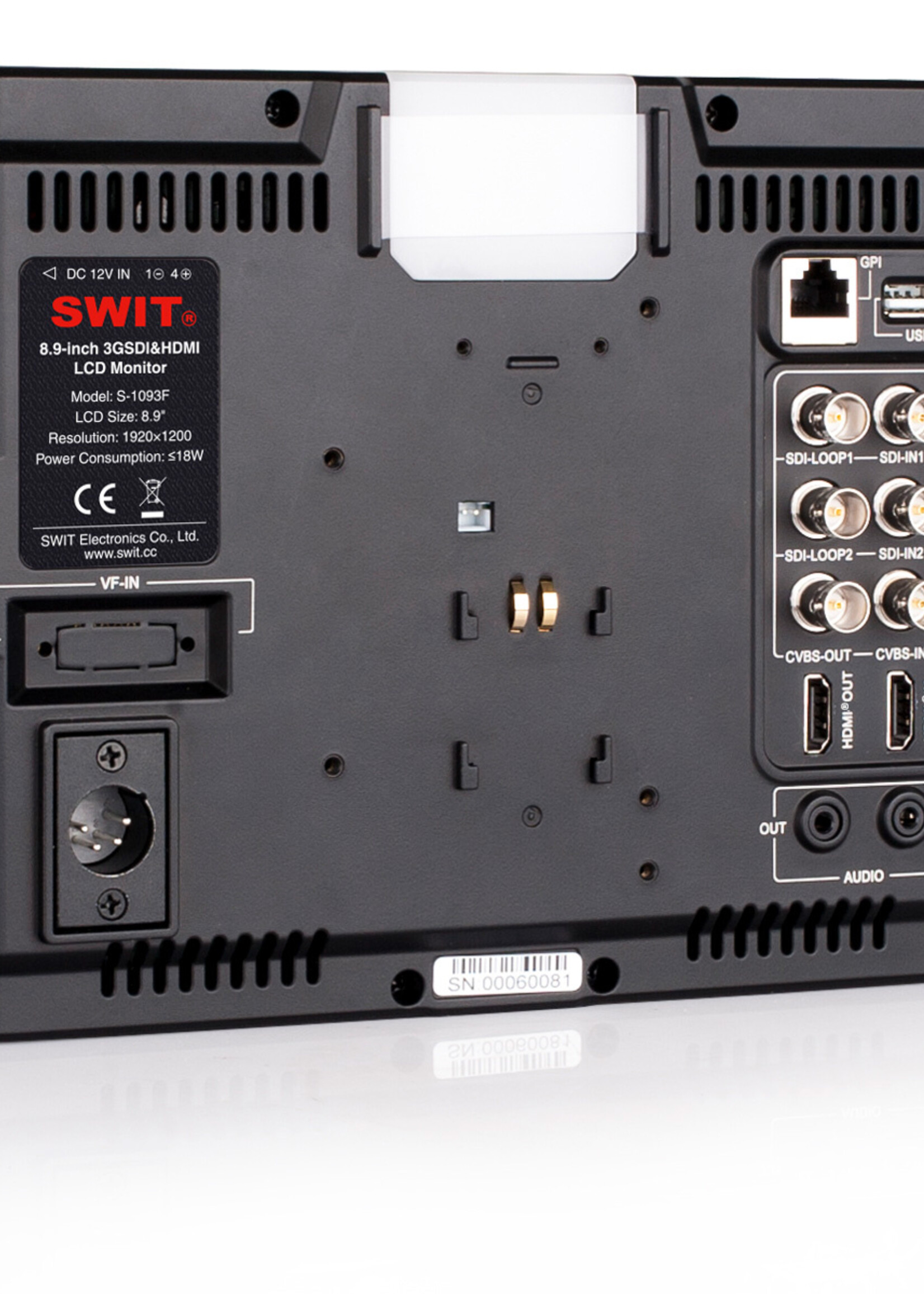

Input

BNC ×2	2K/3G/HD/SD-SDI input×2
BNC ×1	Composite input
HDMI® ×1	HDMI® input
3.5mm ×1	Analog audio input

Output

BNC ×2	2K/3G/HD/SD-SDI loop output ×2
BNC ×1	Composite loop output
HDMI® ×1	HDMI® loop output
3.5mm ×1	SDI, HDMI®, Analog audio output

Video Format

SDI	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50)
	1080i (60 / 59.94 / 50)
	1080p (30 / 29.97 / 25 / 24 / 23.98)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
	480i (59.94)
	576i (50)
HDMI®	480i/ 576i / 480p / 576p
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
CVBS	PAL / NTSC

General

Input voltage	DC / battery 6.5V-24V
Power consumption	≤18W
Working temperature	0°C～+40°C
Working humidity	10%～90%
Storage temperature	-15°C～+60°C
Storage humidity	10%～90%
Dimensions	241×178×50mm
Net weight (main body)	Net 960g simple vesion with pakcage 2.4kg luxury version with package 4.05kg
