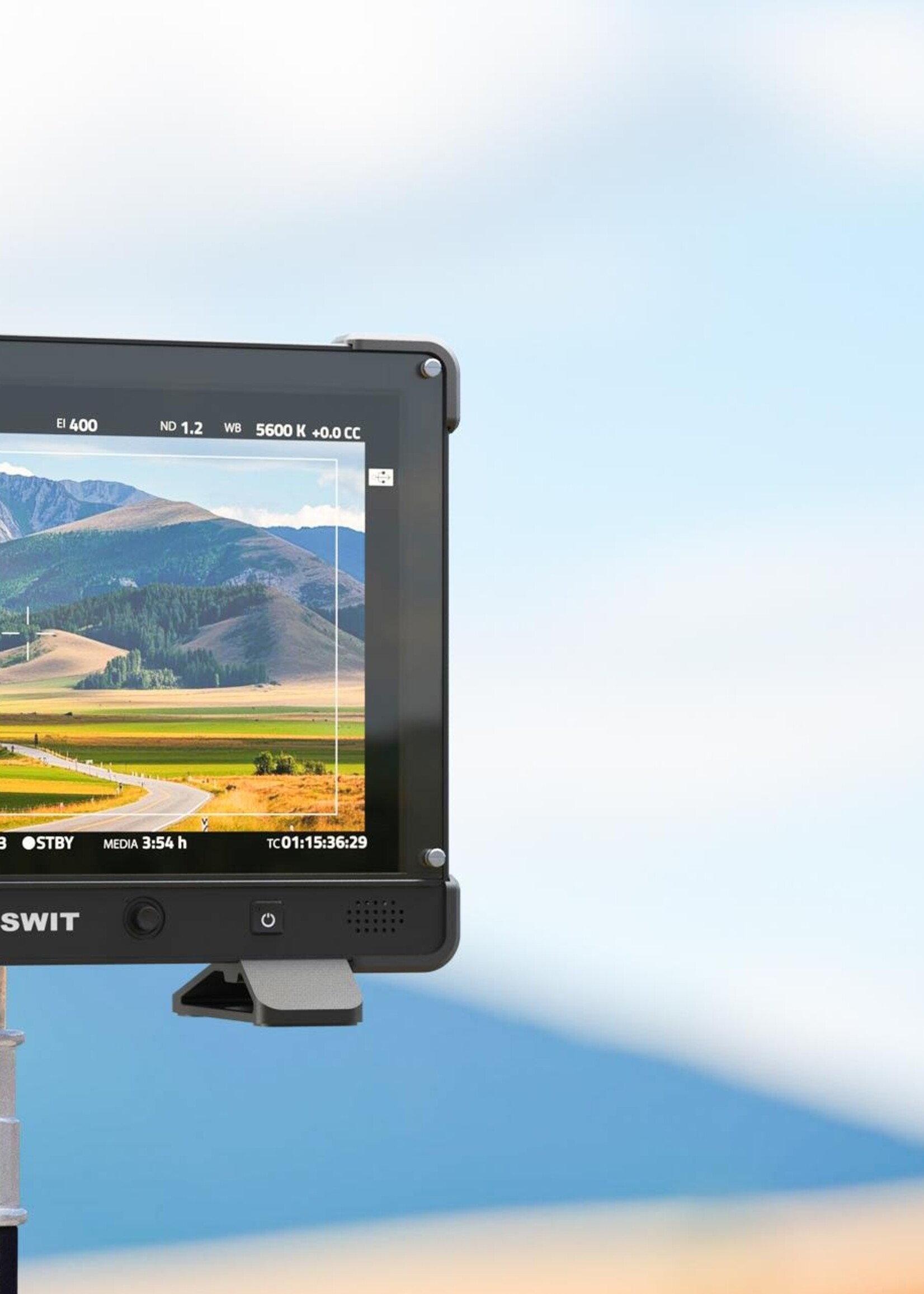

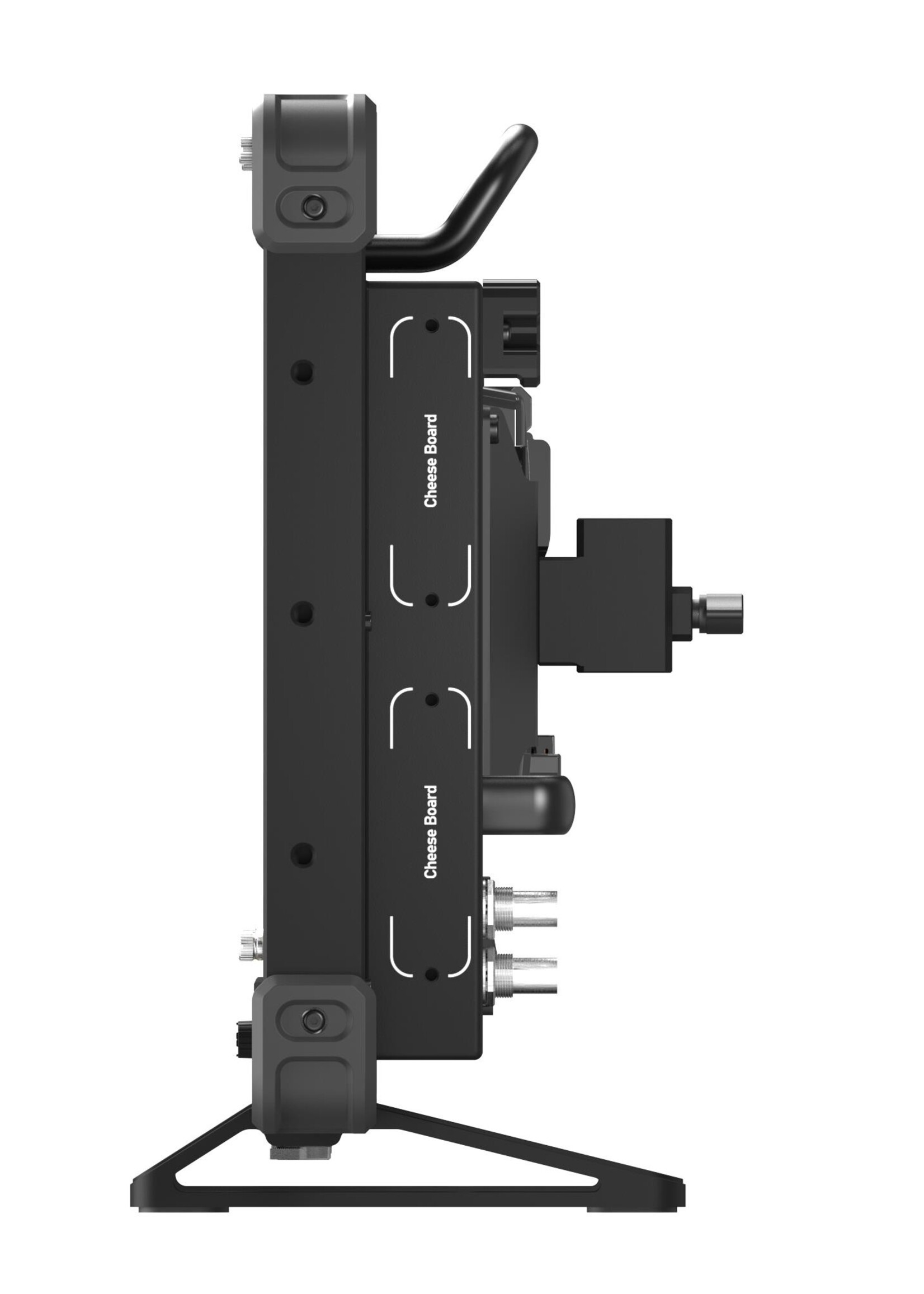

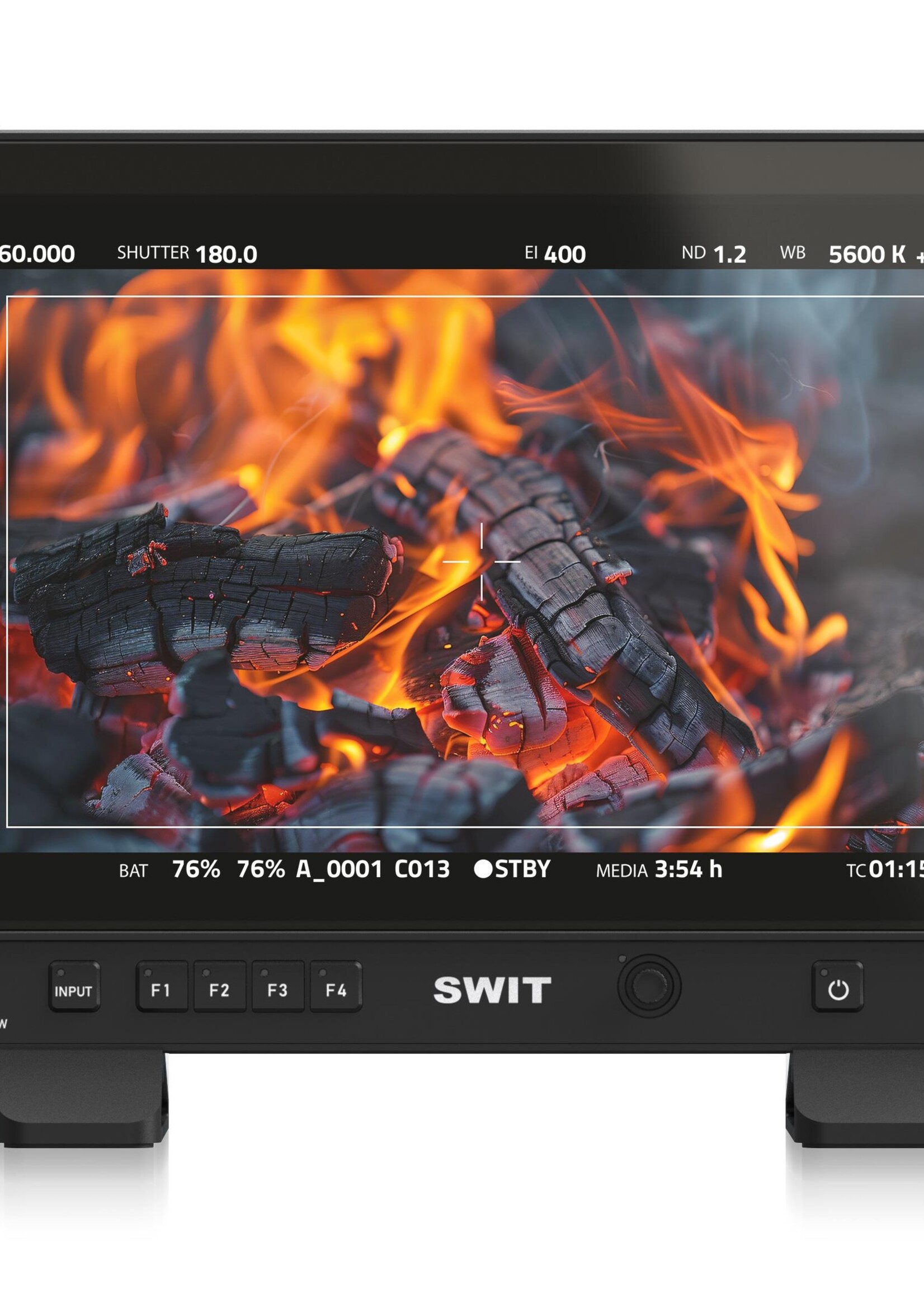

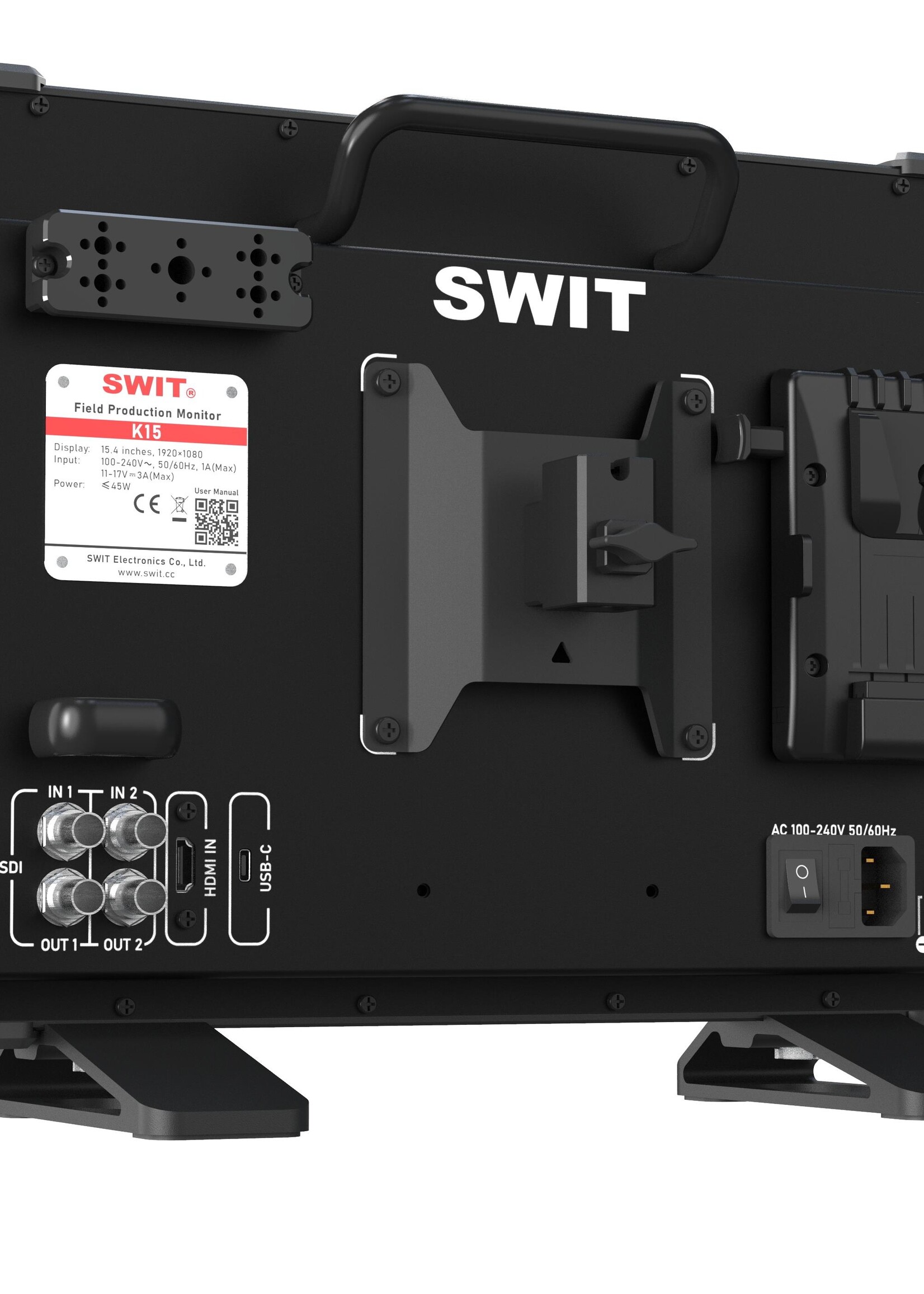

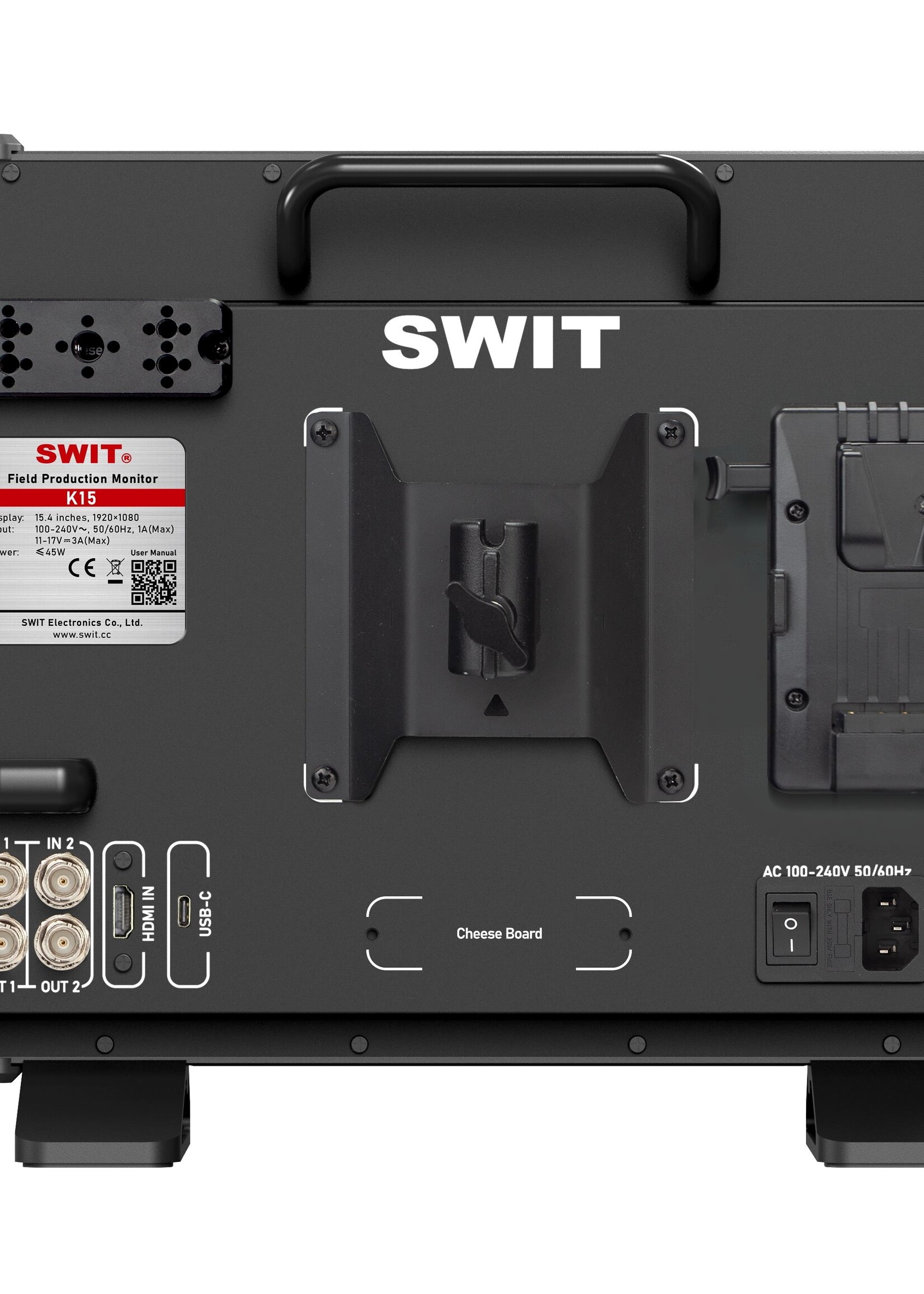

K15 (in Carrying Case) | 15.4" professional High-bright HDR FHD Field Monitor with Carrying Case, V-mount
› 15.4-inch 1920×1200 10bit IPS Panel
› 1500nits high bright sunlight view
› Near OLED high contrast deep black
› Rubber corner anti-crash guards
› Quick release screen protective glass
› 2× Interchangeable Cheese plates
› Provide C-stand Mounting Adaptor
› 2K/3G/HD/SD-SDI & 4K-HDMI Monitoring
› Built-in Multi-Camera Delog Luts SDR & HDR
› 10× User 3DLuts Cubes Upload by USB-A
› Automatic 3DLuts Calibration by USB-C
› Scene OS - 8 Pages Create Quick Switching
› 4× Function Keys Assigned for Each Scene
› Anamorphic De-squeeze
› Custom False color / Zebra values
› Waveform / Vector scopes / Histogram
› Peaking / Focus assist / Crosshatch / Safe area
› SDI audio meters / Timecode display
› AC / 4-pin XLR / V-mount battery power
› Shipping with engineering carrying case
|
Panel type |
IPS, LED backlight |
|
Size |
15.4 inches |
|
Display area |
330.62×206.64mm |
|
Resolution |
1920×1200, 16:10 |
|
Brightness |
1500nits |
|
Contrast |
1650:1 |
|
Color depth |
10-bit |
|
Response time |
18ms |
|
Viewing angle |
178°(H) /178°(V) |
|
BNC ×2 |
2K/3G/HD/SD-SDI input |
|
HDMI® ×1 |
HDMI® 1.4 input |
|
USB-A ×1 |
LUT, firmware input |
|
USB-C ×1 |
Calibration probe input |
|
BNC ×2 |
2K/3G/HD/SD-SDI loop output |
|
Analog audio |
3.5mm headphone and speaker |
|
SDI |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
|
HDMI |
4096×2160p (30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (30 / 29.97 / 25 / 24 / 23.98) | |
| 2160×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
|
AC Input |
AC 100-240V, 50/60Hz |
|
DC Input |
4-pin XLR & V-mount battery 11-17V 3A |
|
Power Consumption |
≤45W |
|
Working temperature |
0°C～+40°C |
|
Working humidity |
10%～90% |
|
Dimensions |
Monitor: 387.4×280×90.7mm |
|
Net weight |
5.3kg; With package 6.9kg |
