GREAT BRIGHTNESS

Thanks to the super brightness of 3000 nits, you don’t even need a sunshade when shooting in strong daylight. Additionally, all G7 monitors are calibrated before shipping and have full manual calibration controls built into the software for user adjustment.The 7″ is an excellent solution to satisfy the needs of portability and detail viewing.

• 7 inch display
• 3000 nits
• resolution 1920×1200
• contrast rato 1200:1
• 16,7 milion colors
• viewing angle: 160 degrees

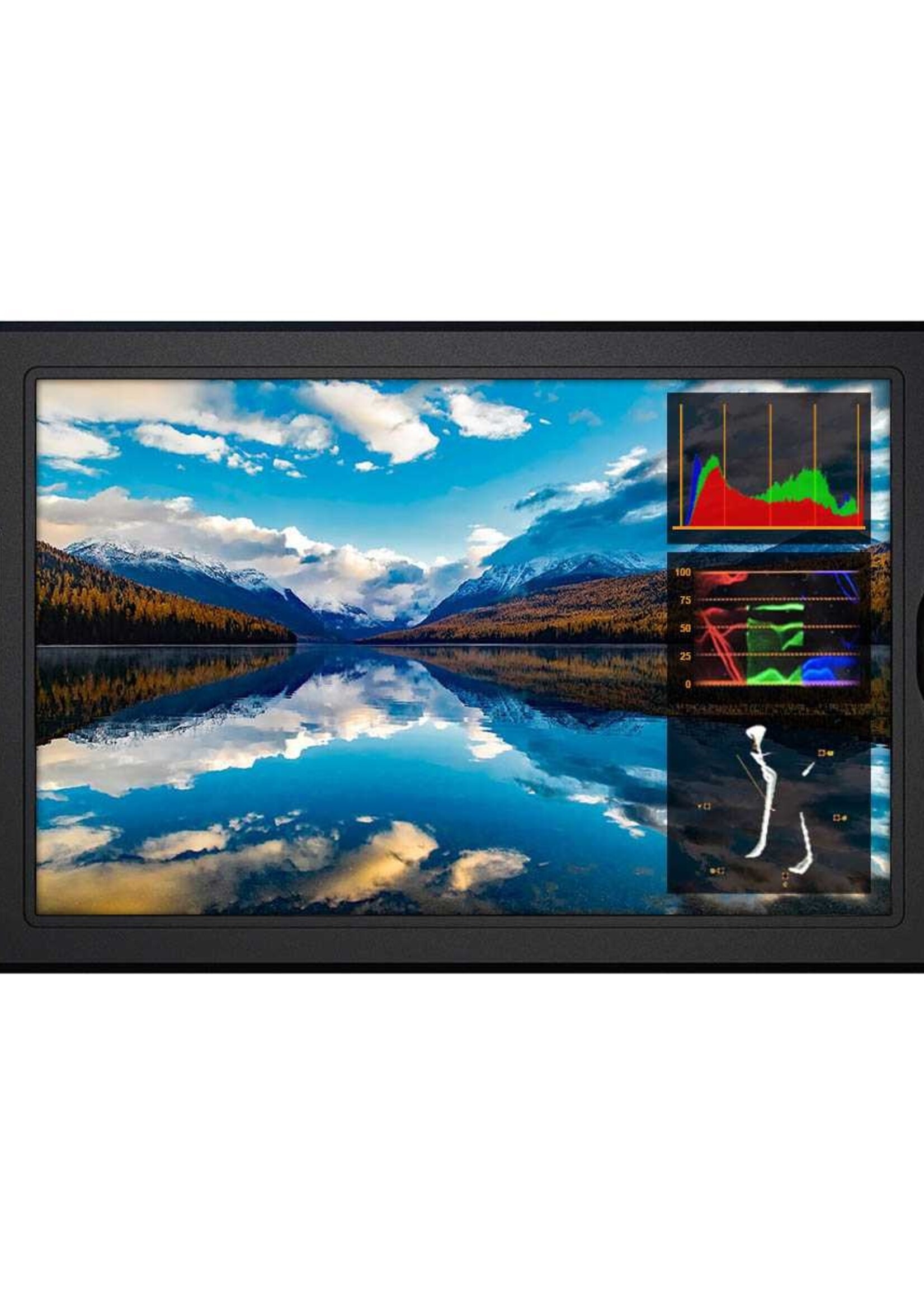

Visualization Tools

The G7 has a full set of image assistance tools to help you nail framing, exposure, focus, and audio. It also supports real-time LUT preview for LOG shooting, you can add your favorite custom LUT via SD card. The G7’s scene-style user interface allows the user to create up to 8 scenes containing different instruments for various monitoring situations; Once you have preset these scenes, all you need to do on set is change the scene.

• built-in 3D LUTs
• false color
• focus assist
• anamorphic
• image re-size
• upload LUTs by SD coard

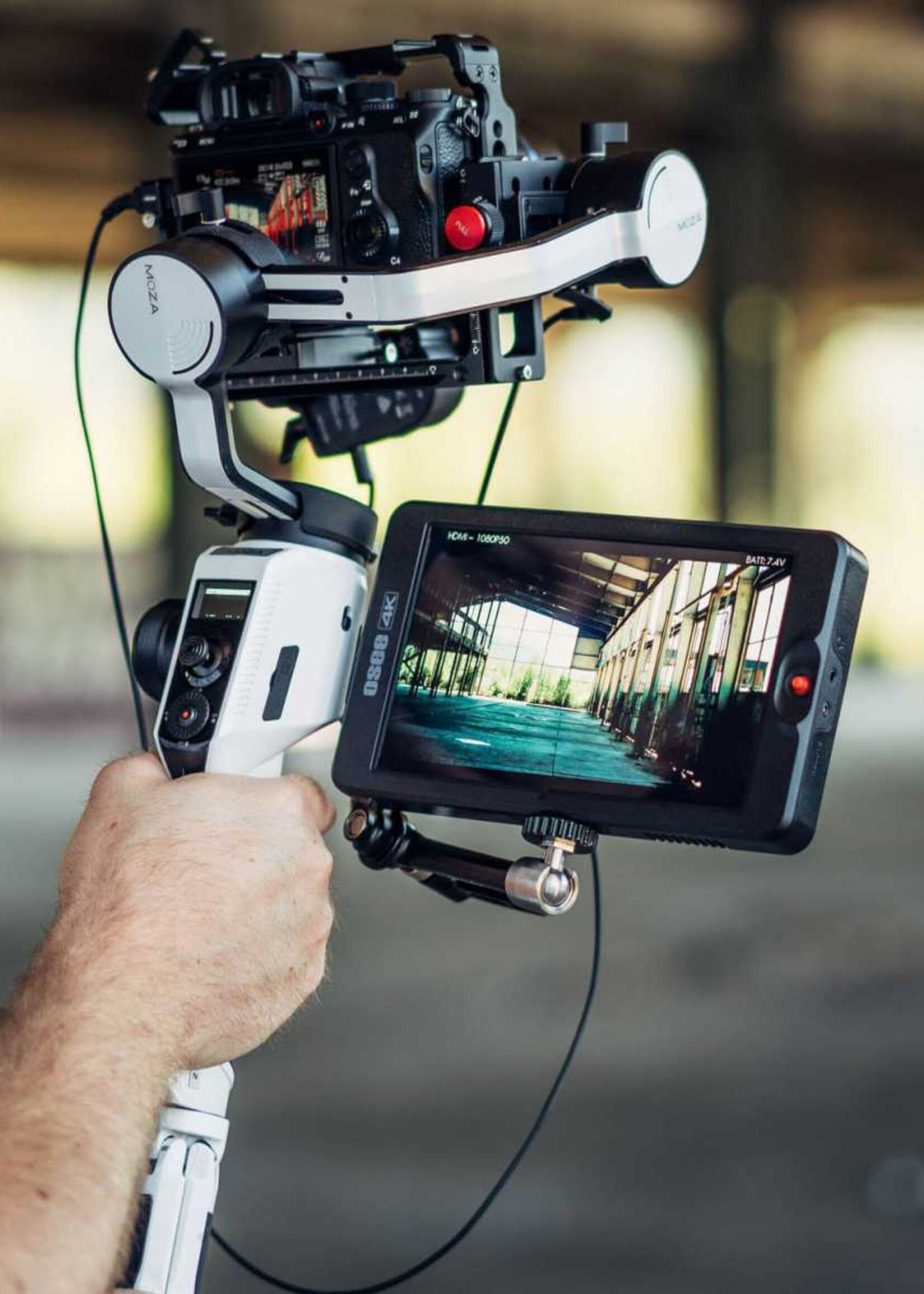

Ergonomics and versatility

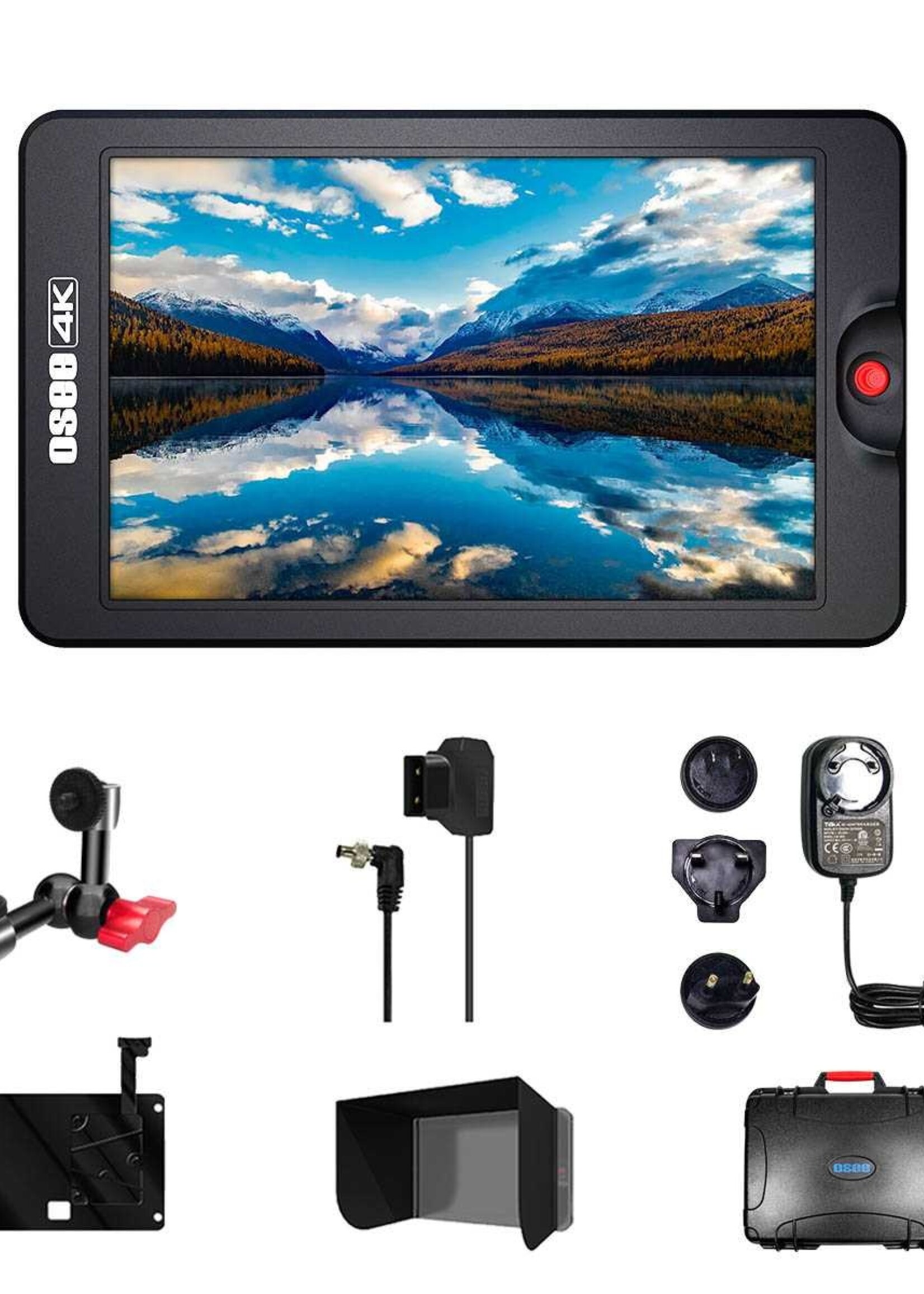

The G7 uses a single joystick to navigate menus, so you have a clean screen and no longer have to constantly wipe away fingerprints. With the AC adapter, direct connection for Sony L-type batteries, V-mount battery plate and lockable D-tap to prong DC cable, you can conveniently power the G7 in every possible situation. The G7 weighs just 450g without a battery, reducing the overall burden on your camera setup. The kit also includes a pelican hard case capable of protecting the monitor and all accessories very well.

Flexible Power solution

The Osee G7 on-camera monitor has both Sony NP-F battery slot and DC in port, with the AC to DC power adaptor, v-mount battery plate and D-tap to lockable pole DC cable, you can power G7 through small/large capacity battery and AC power.

Convenient and clean operation

G7’s scene style Ul allows user building up to 8 scenes containing different tools for various monitoring situation, after presetting these scenes, all you need to do on set is switching scenes. G7 uses one single joystick to navigate through menus, so you will have a clean screen, no need to constantly wiping fingerprints anymore.

HARDWARE

MONITOR BODY

Weight(Bare Monitor):450g

Dimensions(W x H X D):192.0mm×116.3mm×24.7mm

Mounting Points”:1/4’’ Thread Points (1*Top&1*Bottom)

Fan: Fan speed adjustable

DISPLAY

Panel Size: 7inch

Resolution: 1920X1200

Aspect Ratio: 16:10

Color Depth: 1.06G

Brightness: 3000nits

Contrast: 1200:1

Anamorphic De-squeeze: 1x, 1.33x, 1.5x, 1.66x, 1.8x, 2x, 2xMAG

DSLR Scale: Canon 5D Mark 2, Canon 7D

Zoom: 2x, 4x Zoom and Pan

Screen Rotate: Auto/0°/180°

POWER

Input Voltage: DC IN 11-17V, Battery 6-8.4V

Battery Plate: SONY NP-F

Power Consumption: 16.2W

DATA I/O

SD Card Slot: 3D LUTs upload and Firmware Upgrade (SD card under 16G and formatted to FAT32 is recommended)

Input/Output Signal:

• HDMI(1.4)
• 3840x2160p(30/29.97/25/24/23.98)
• 1080p(60/59.94/50/30/29.97/25/24/23.98)
• 1080i(60/59.94/50)
• 720p(60/59.94/50)
• 480i/576i/480p/576p
• SDI
• 2KP60/59.94/50
• 1080P60/59.94/50/30/29.97/25/24/23.98
• 1080i60/59.94/50
• 1080SF30/29.97/25/24/23.98
• 1035I60/59.94

Audio: 3.5mm Headphone Jack

SOFTWARE

CONTROL

Volume: Level 0-31 Adjustable

Backlight: Level 0-10 Adjustable

Display Rotate: Screen Rotate Auto/0/180& Image Rotate 0/180

Anamorphic: 1X/1.33X/1.5X/1.66X/1.8X/2X/2XMAG/Off

DSLR Scale: None/CANON 5D MARK II/CANON 7D

FRAME TOOLS

Aspect: 4:3/1.85:1/2.39:1/16:9/Custom Ratio, Matte/Line Mode

Safe: 16:9 / 14:9 / 4:3, Action&Title Selectable

Center: On/Off

CrossHatch: 2×2, 3×3 … 9×9

EXPOSURE TOOLS

False Color: 17 Curves

Zebra: Level 1-100 Adjustable

Waveform: LUMA/RGB/Parade Mode, Size&Location&Opacity Adjustable

Vector Scope: Location&Opacity Adjustable

FOCUS TOOLS

Focus Assist: White/Red/Green/Blue Mode, B&W Background, Sensitivity Level 1-10 Adjustable

Peaking: Intensity Level 0-10 Adjustable

LOOK TOOLS

Look: Built-in 33 De-log 3D LUTs/Support 16 User 3DLUTs Import by SD Card

Audio Meter: Location&Opacity Adjustable

SCALE TOOL

Image Scale: Location Adjustable
