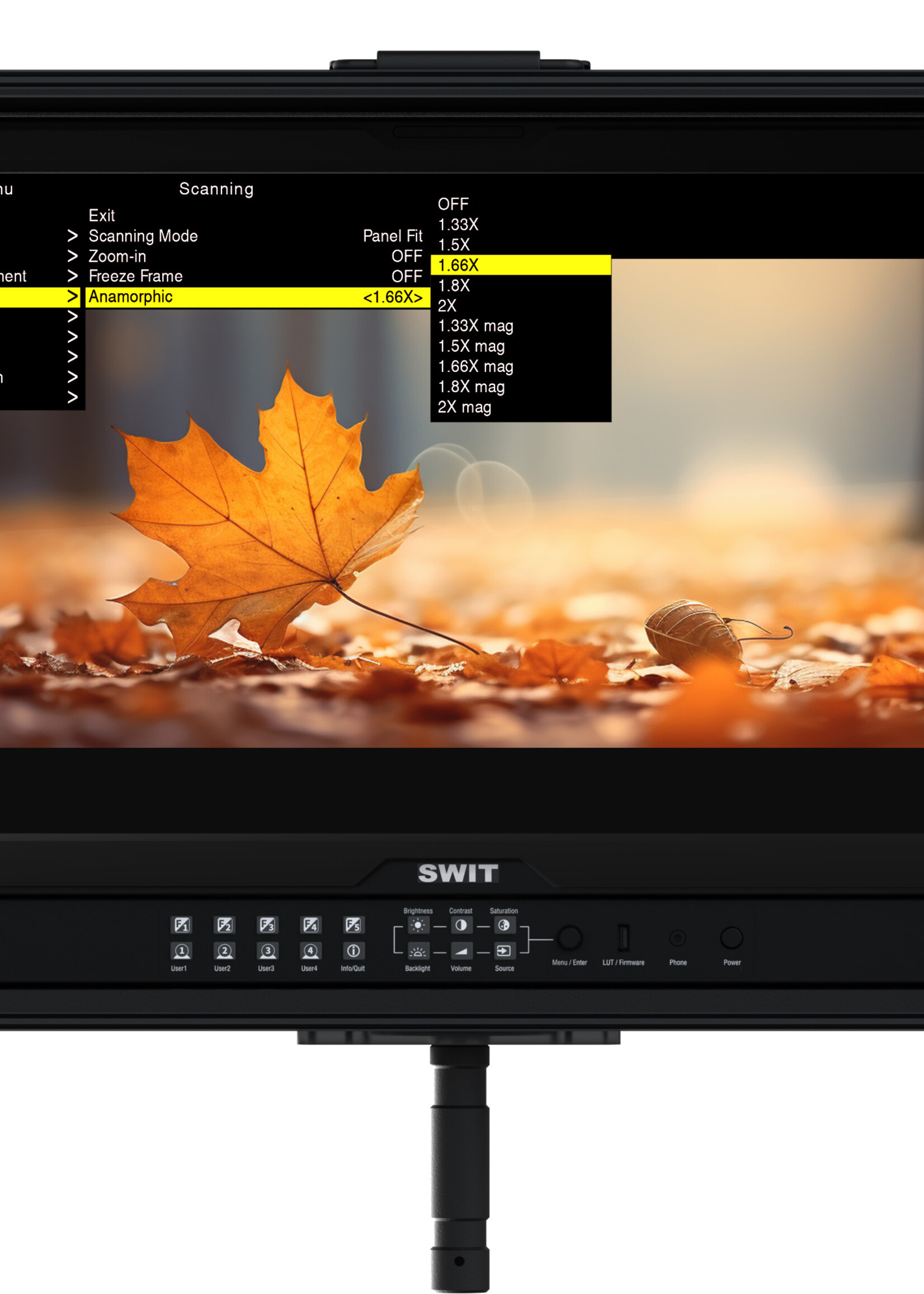

FM-U245HDR 23.8 inch 4K 1000nits 4×12G-SDI HDR Field Monitor
› 23.8-inch LCD Panel, 3840×2160 resolution
› 1000nits high bright LED backlight
› 23.8-inch LCD Panel, 3840×2160 resolution
› 1000nits high bright LED backlight
› HLG/PQ/S-log3 HDR, Payload ID auto setting
› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input

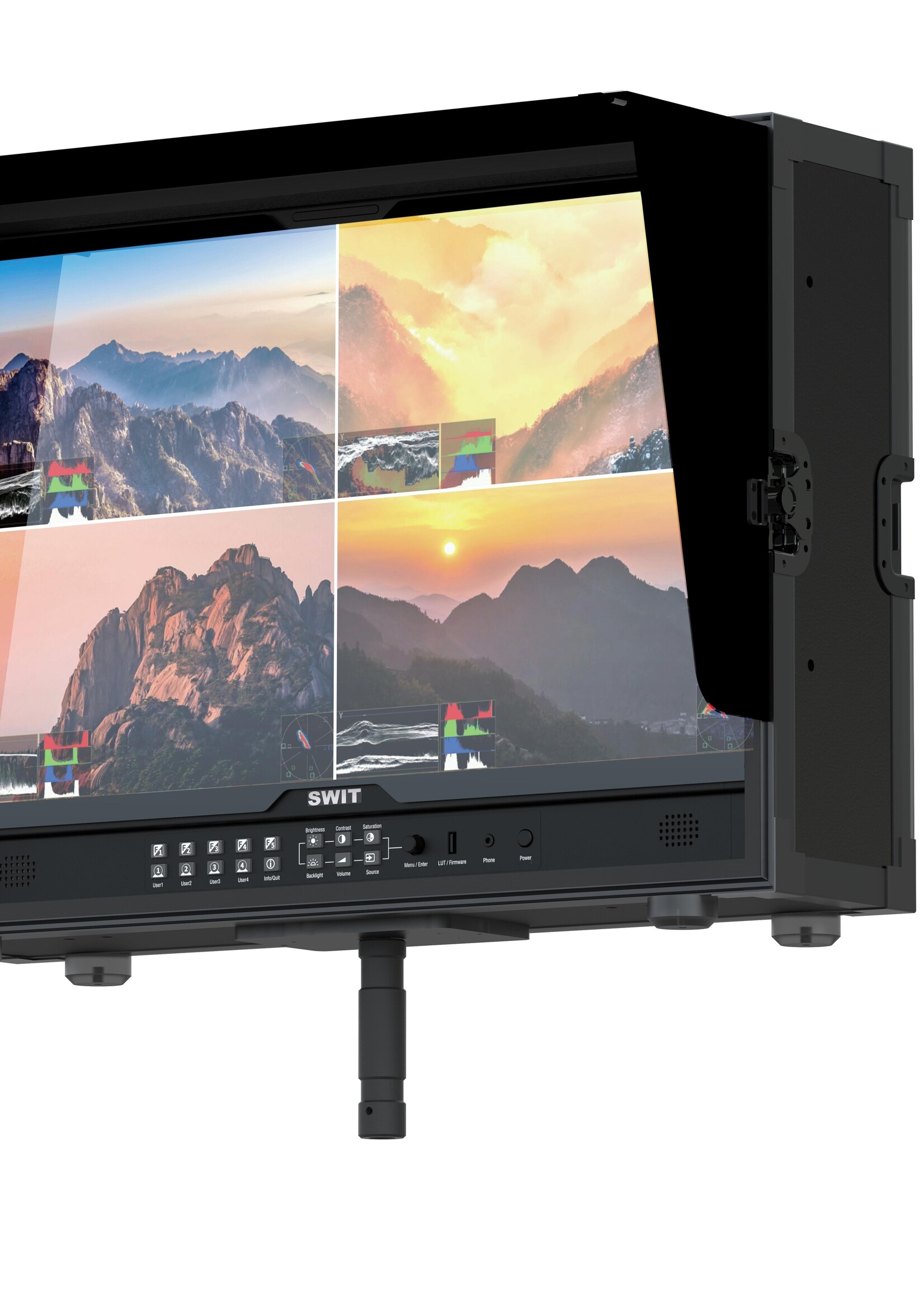

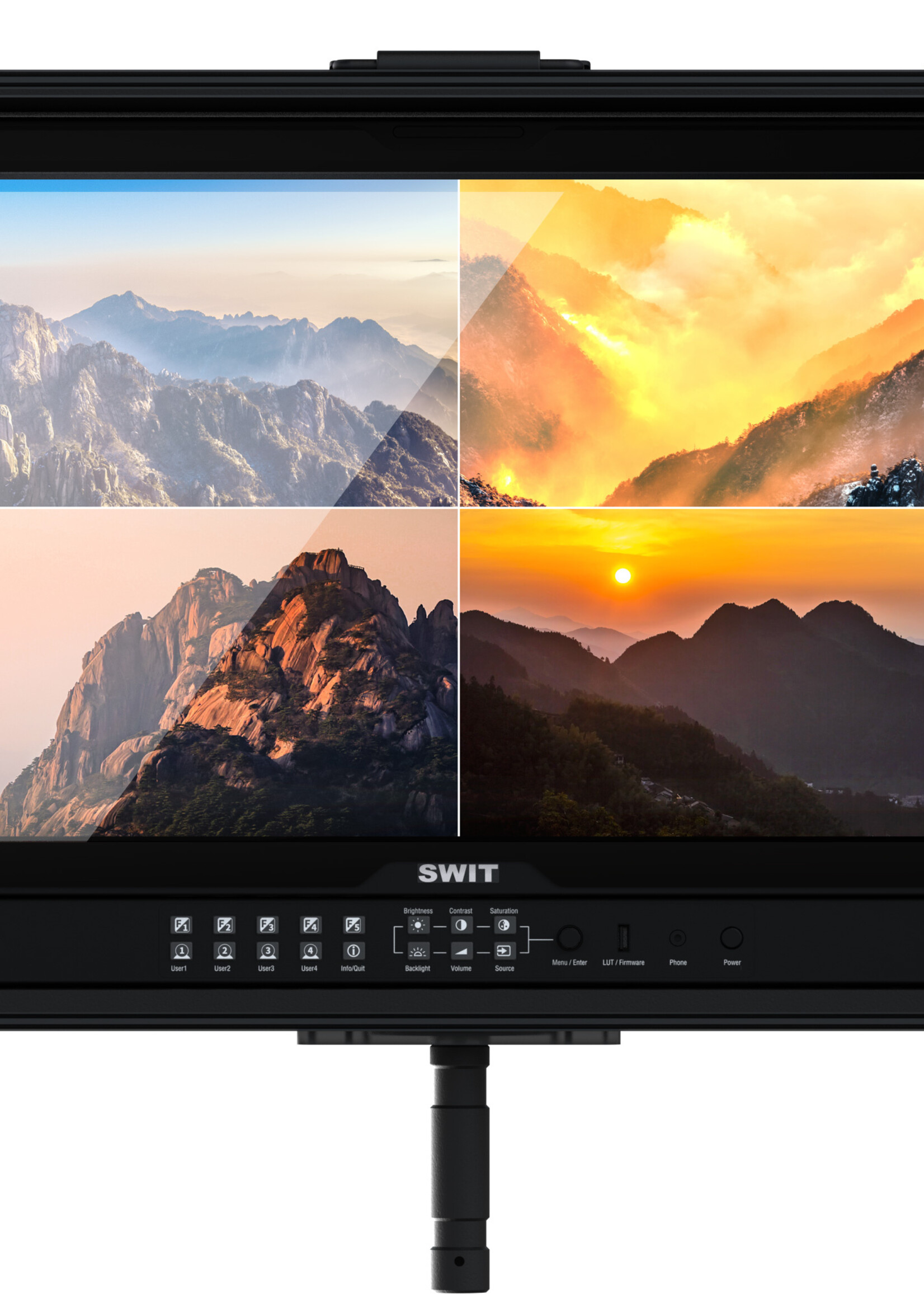

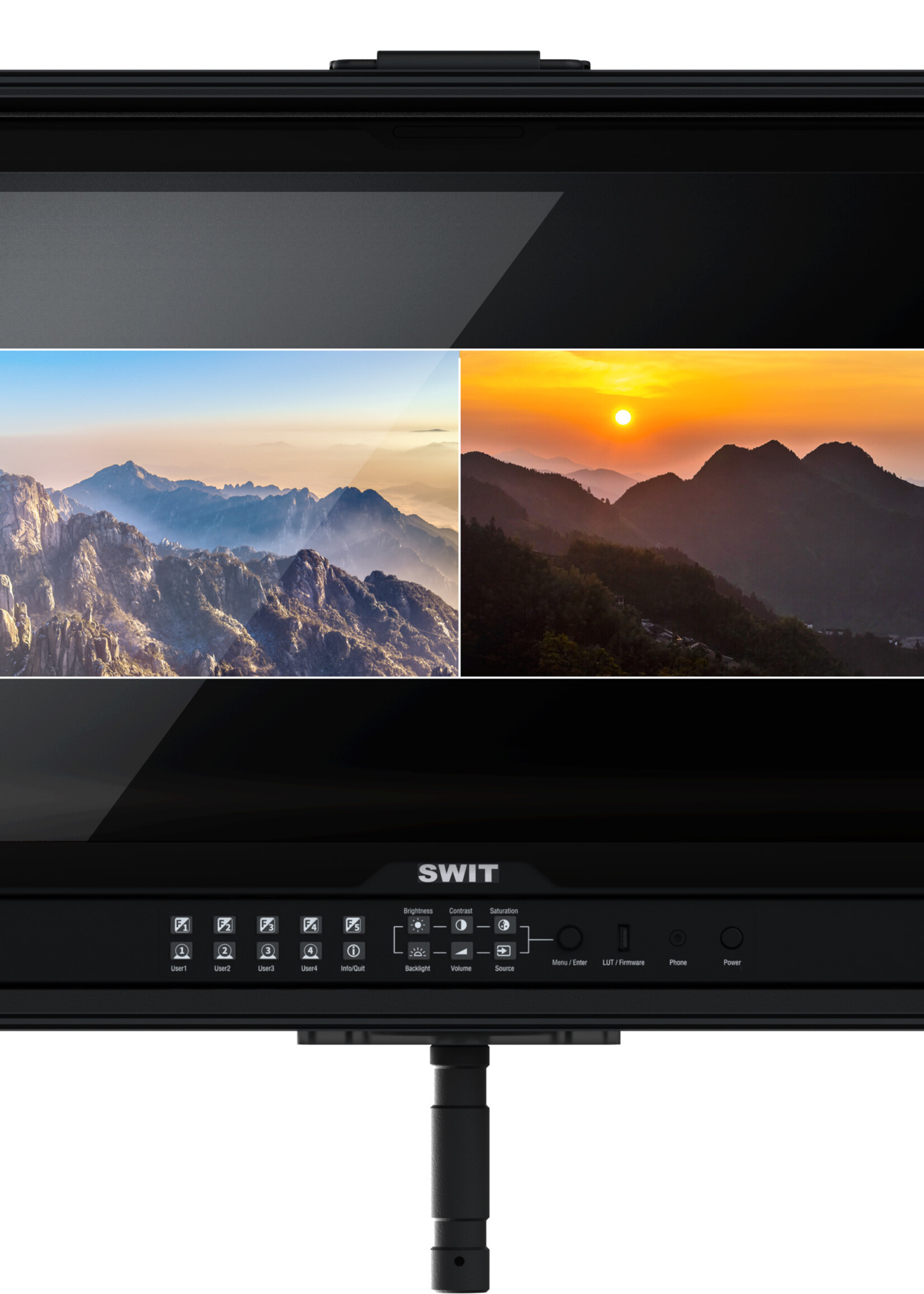

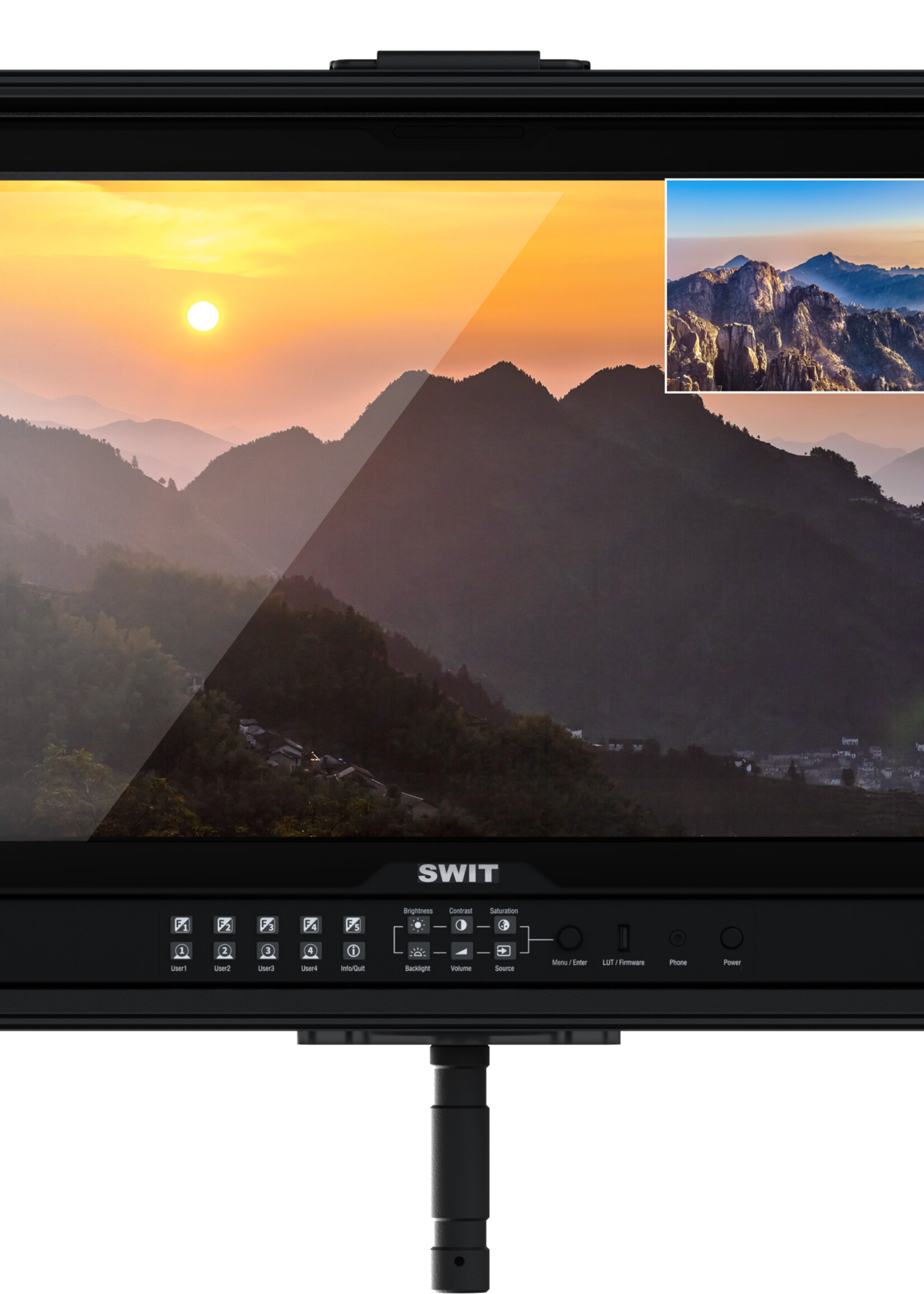

› Quad-view / Pic-by-Pic / Pic-in-Pic

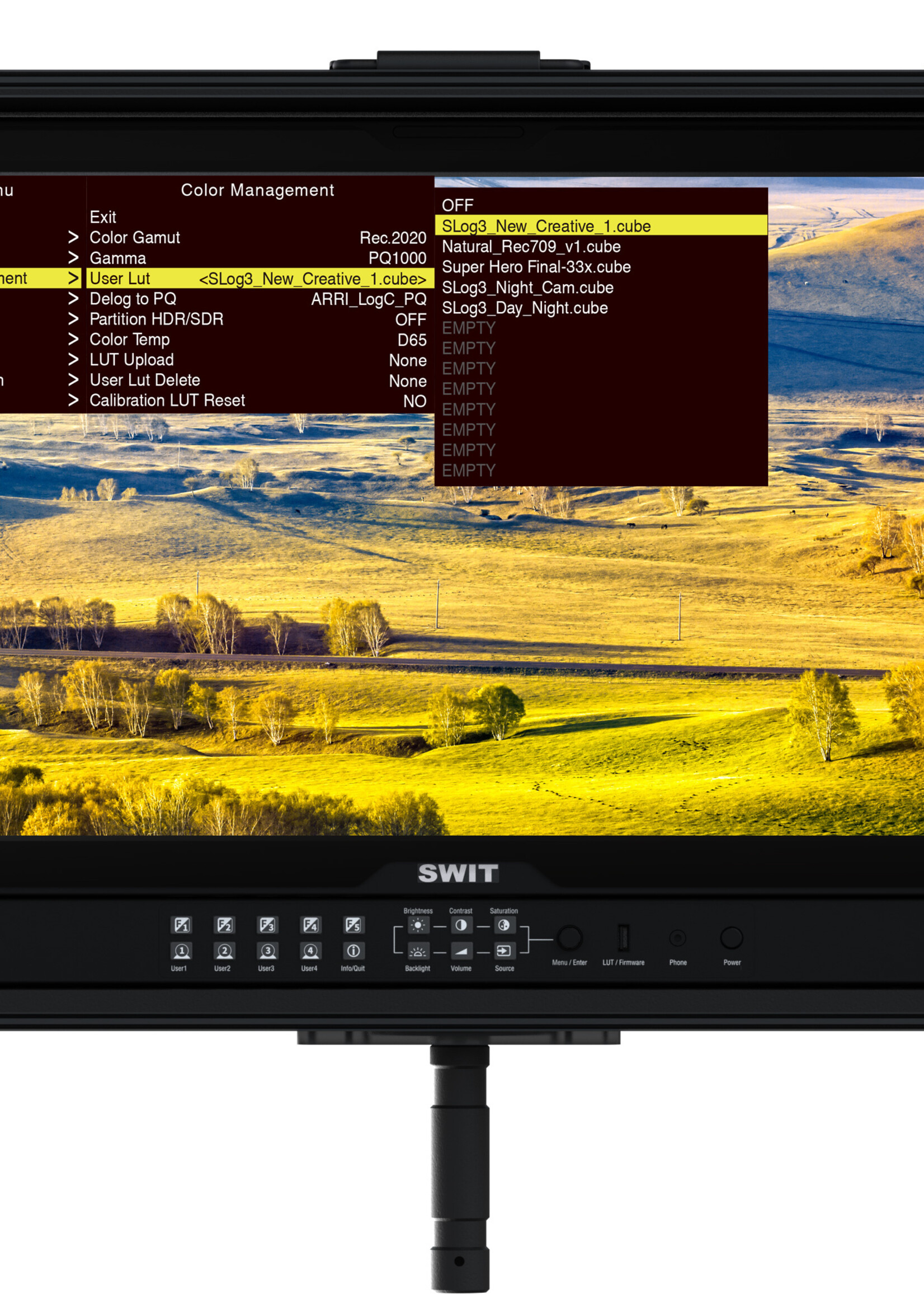

› 3DLUT Auto Self-calibration without PC
› 18-bit and Zero latency video process
› Built-in Multi camera Delog LUTs
› 13× User 3DLuts Cubes Upload by USB-A

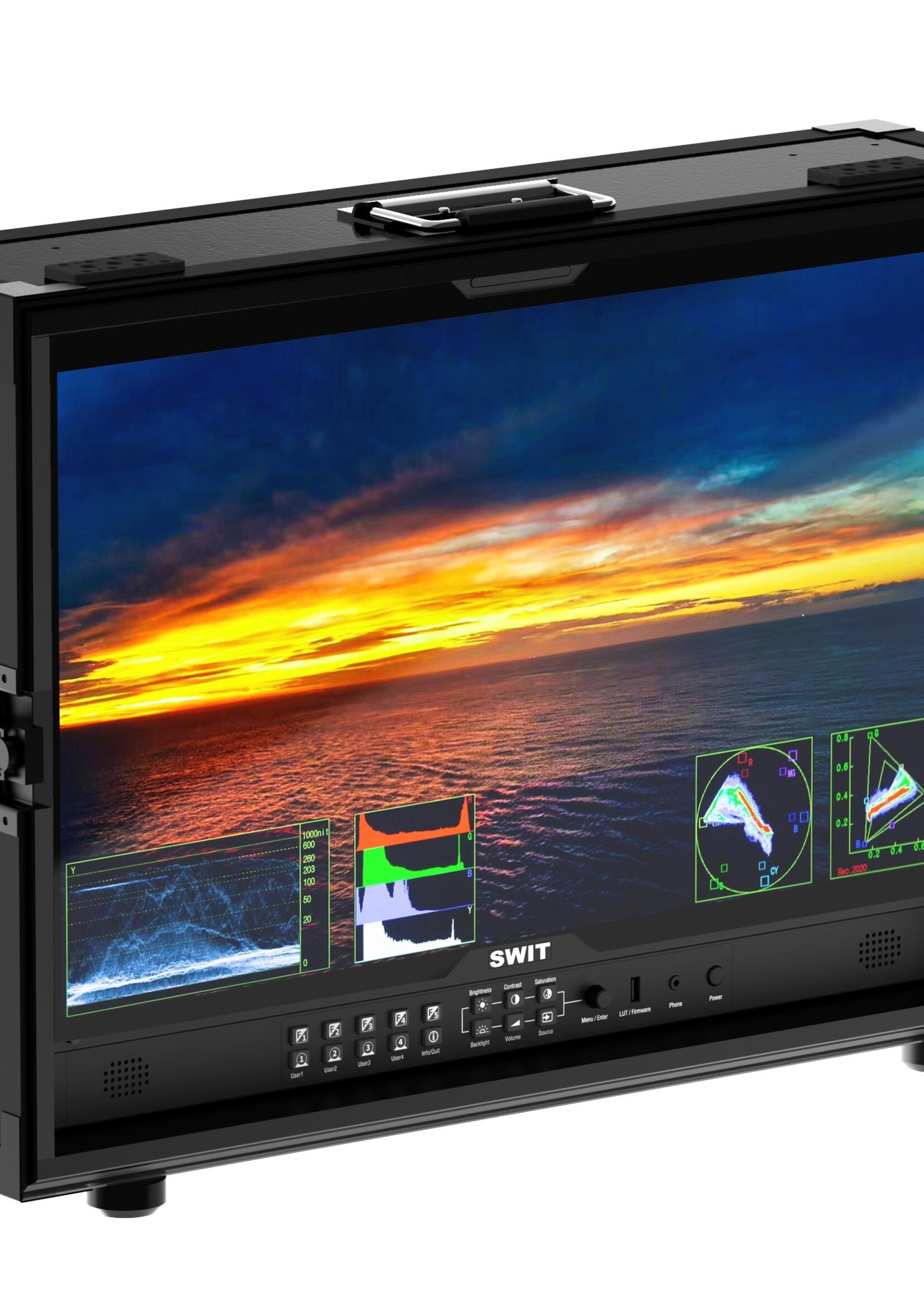

› Waveform / Vector Scope / CIE Scope / Histogram
› Eye Pattern / Focus Assist / Zebra / False Color
› Anamorpic De-squeeze 1.33/1.5/1.6/1.8/2/ MAG
› Audio meters / Lissajous / 5.1&7.1 Surround pattern
› On-board V-mount battery plate

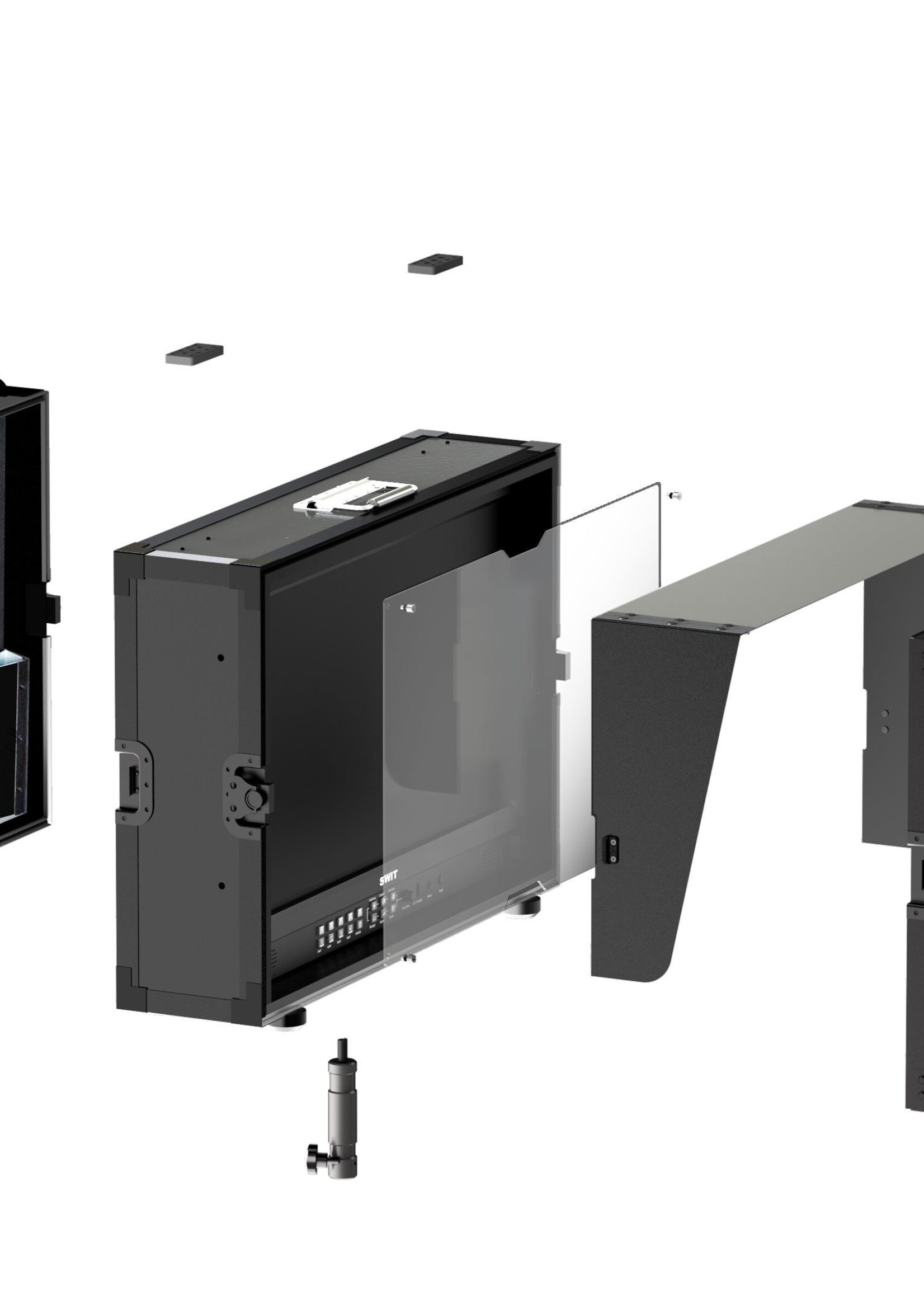

› Shipping with flight case and various accessories
› Junior & Baby double riser stand mounting
|
Size |
23.8 inches |
|
Display area |
527.04×296.46mm |
|
Resolution |
3840×2160 |
|
Aspect ratio |
16:9 |
|
Brightness |
1000nits |
|
Contrast |
1000:1 |
|
Color depth |
1.073G colors, 10-bit |
|
Signal process |
18-bit |
|
Viewing angle |
178°(H) /178°(V) |
|

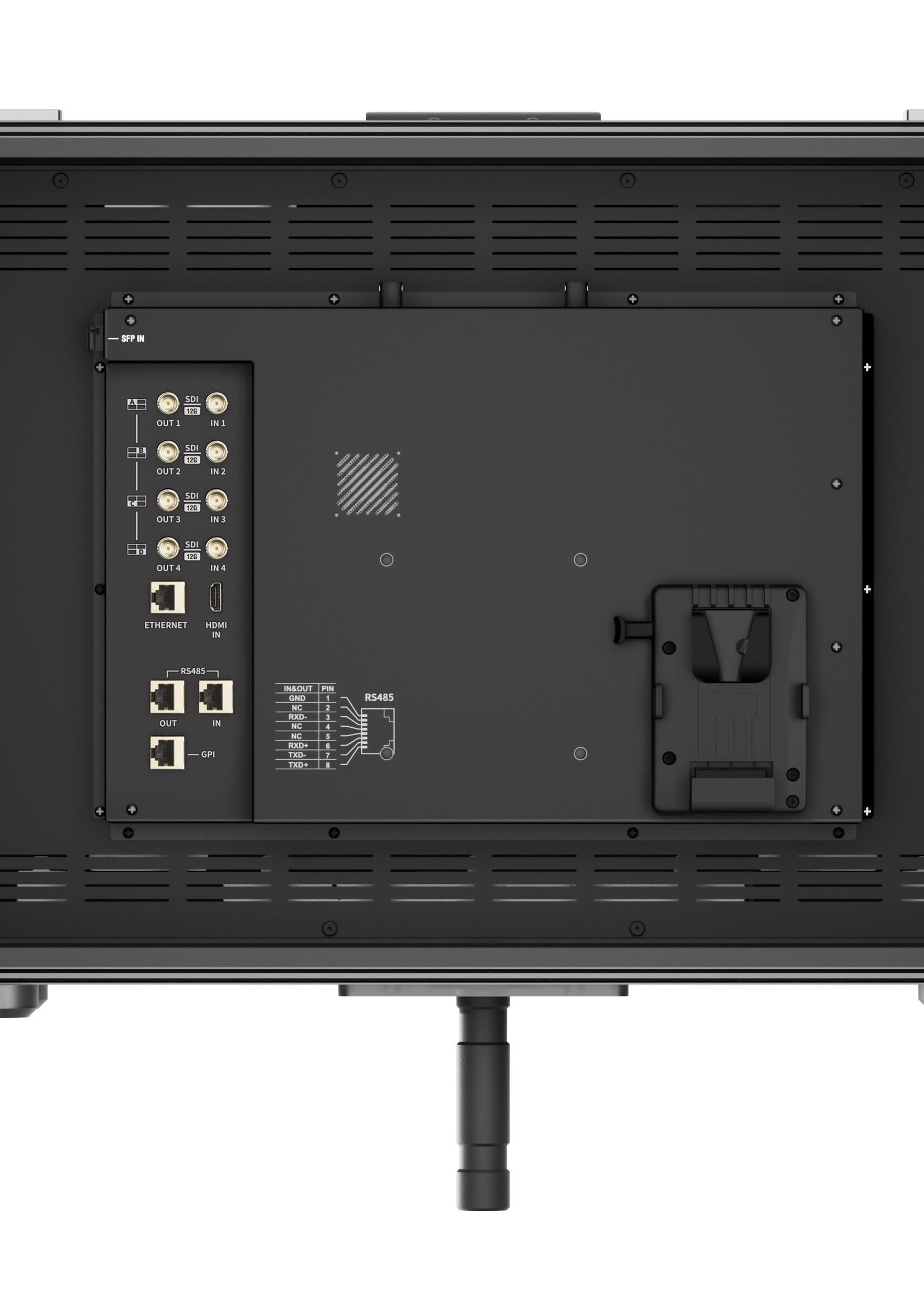

BNC ×4 |
12G/6G/3G/HD/SD-SDI input |
|
HDMI® ×1 |
HDMI® 2.0 input |
|
SFP ×1 |
Optical Fiber input (By optional SFP adaptor) |
|
RS485 ×1 |
TSL 3.1/4.0 UMD input |
|
RS485 ×1 |
GPI (Tally) input |
|
RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
|
BNC ×4 |
12G/6G/3G/HD/SD-SDI loop output |
|
RS485 ×1 |
TSL 3.1/4.0 UMD output |
|
Analog audio |
3.5mm headphone and speaker |
|
SDI 1/2/3/4 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
|
Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
|
Quad Link 8K (Each channel) |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
|
Input voltage |
AC 100-240V, 50/60Hz, DC 12-17V |
|
Power consumption |
120W |
|
Working temperature |
0°C～+50°C |
|
Working humidity |
10%～90% |
|
Storage temperature |
-15°C～+60°C |
|
Storage humidity |
10%～90% |
|
Dimensions |
Entire Flight Case 632×480×270mm Without front/rear covers 632×480×155mm |
|
Net weight (main body) |
With all accessories 21.1kg |
