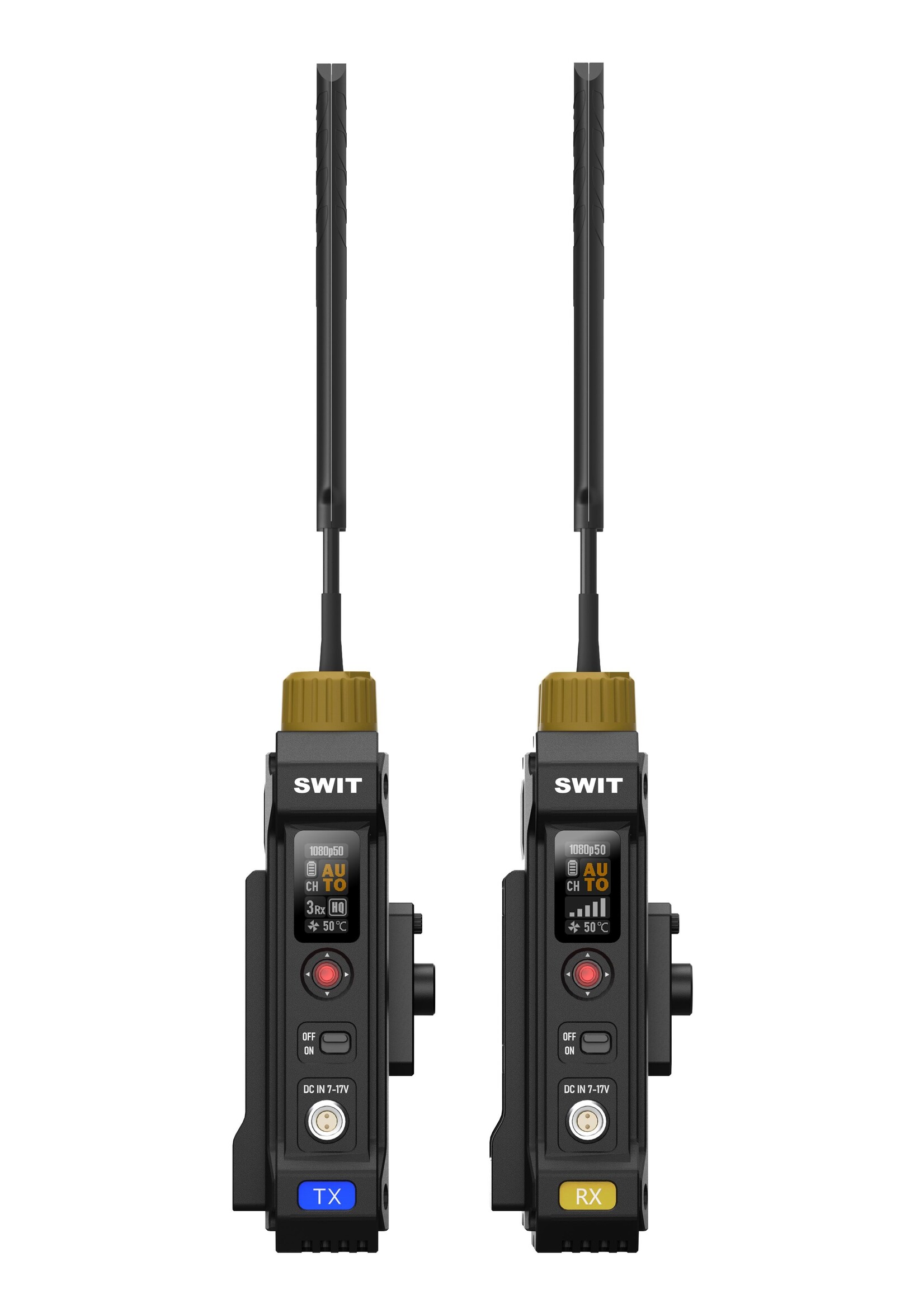

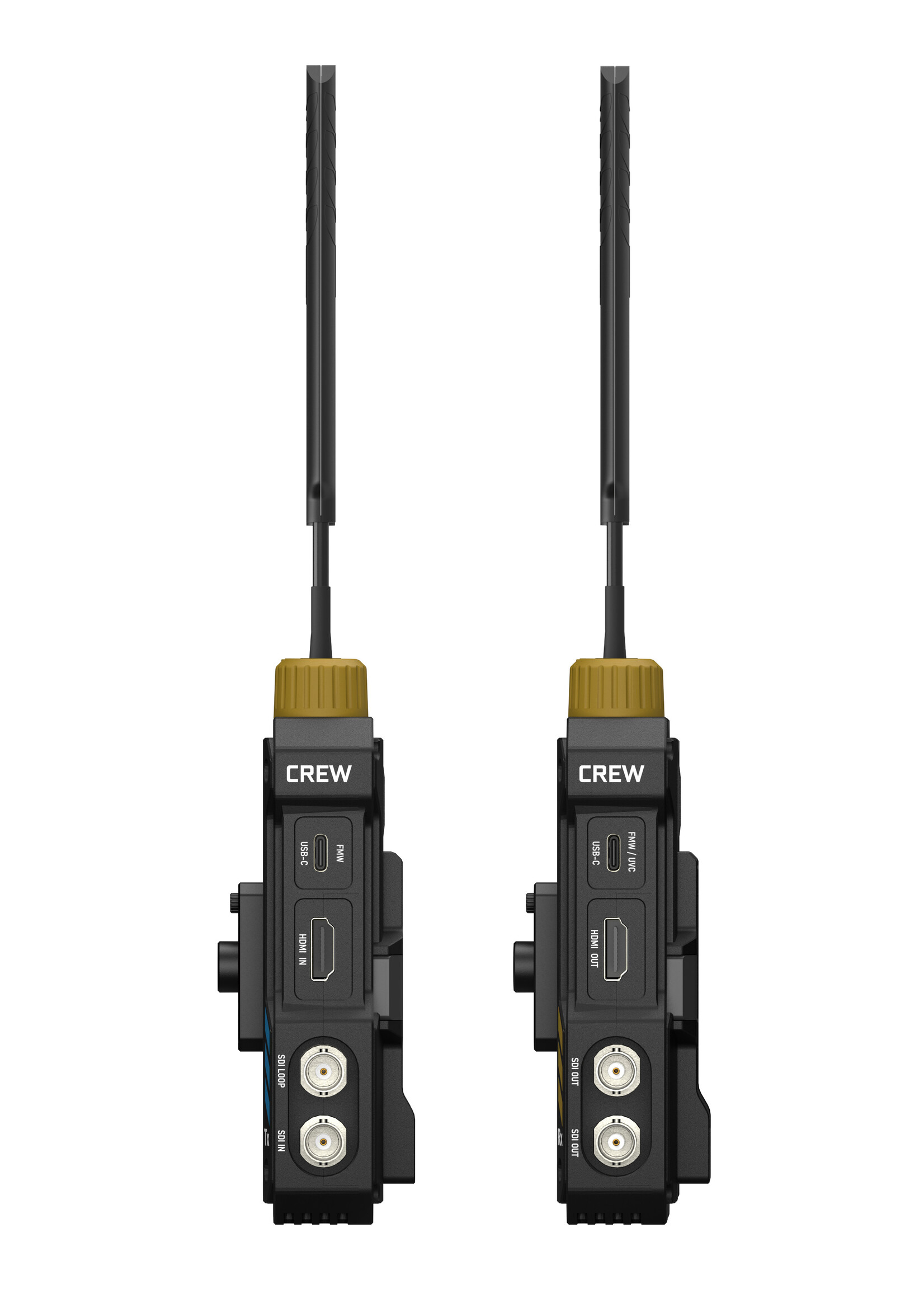

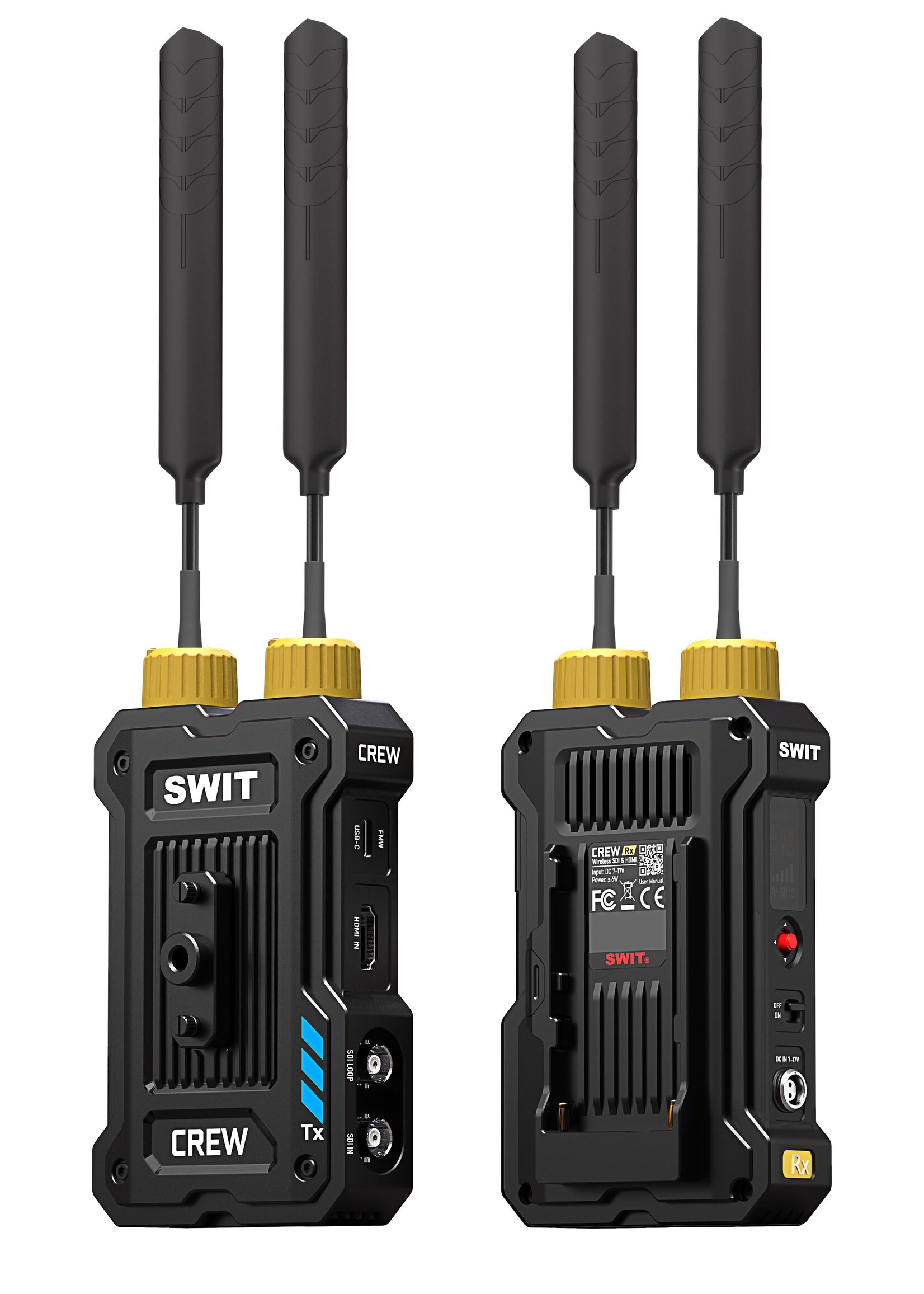

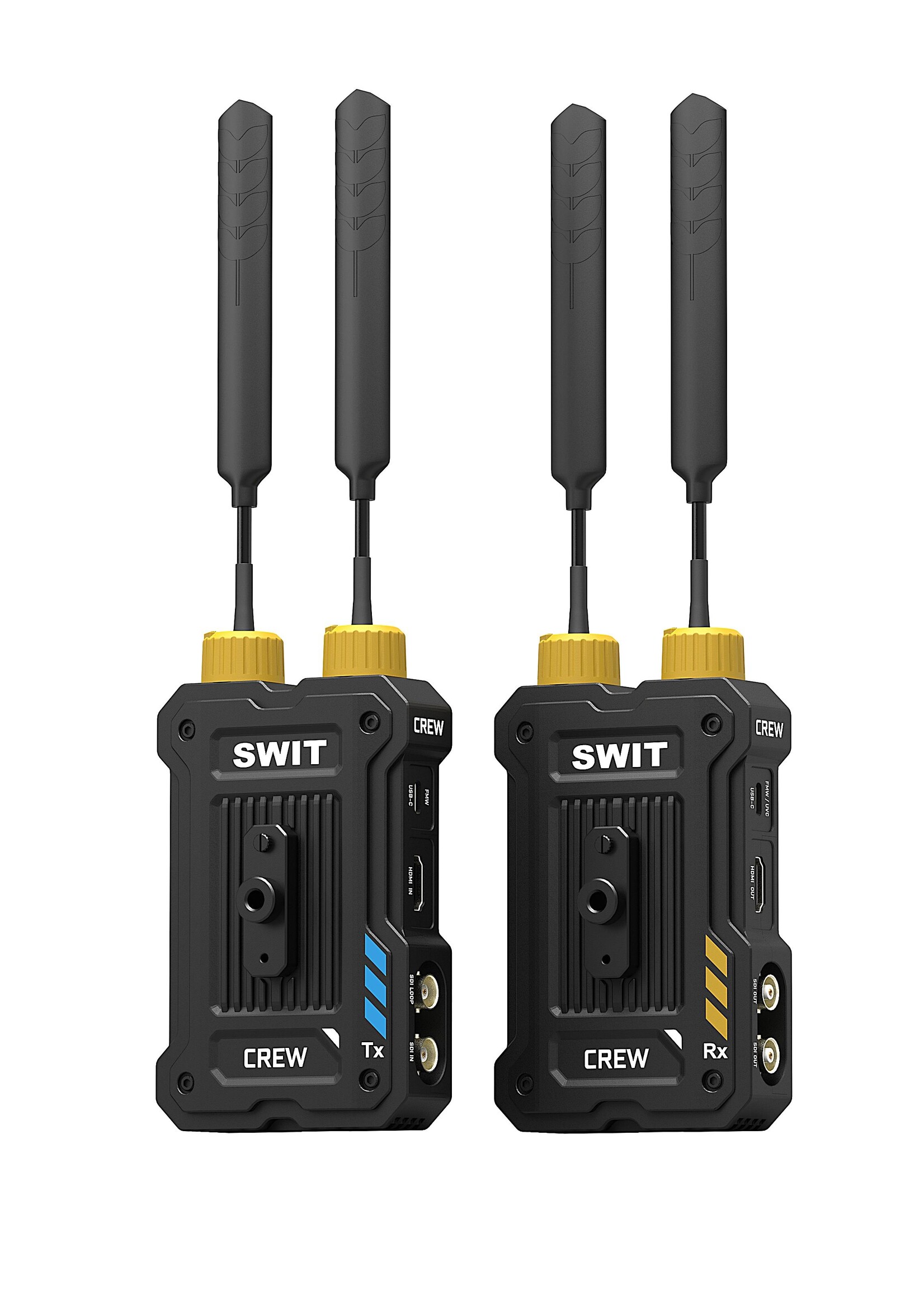

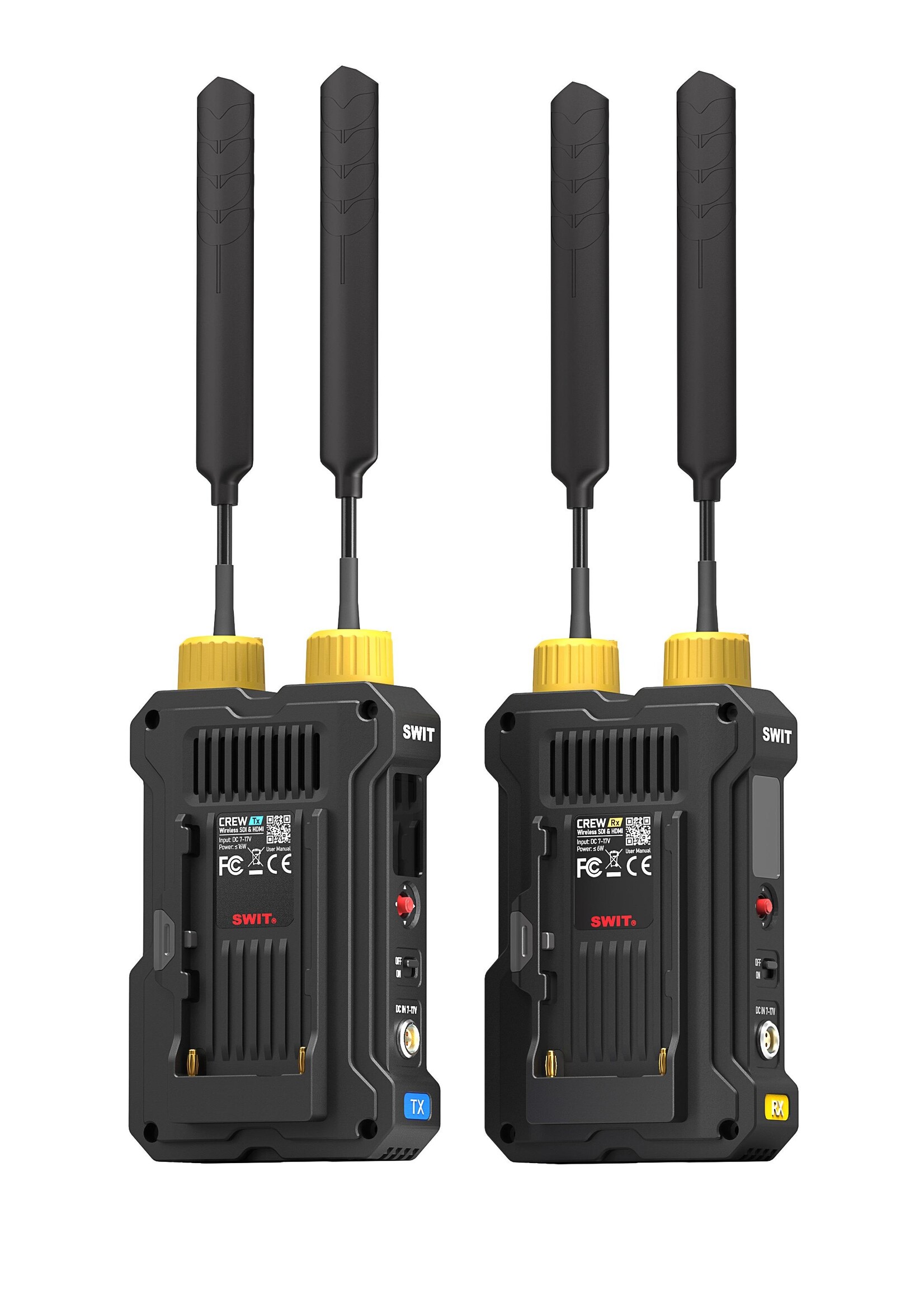

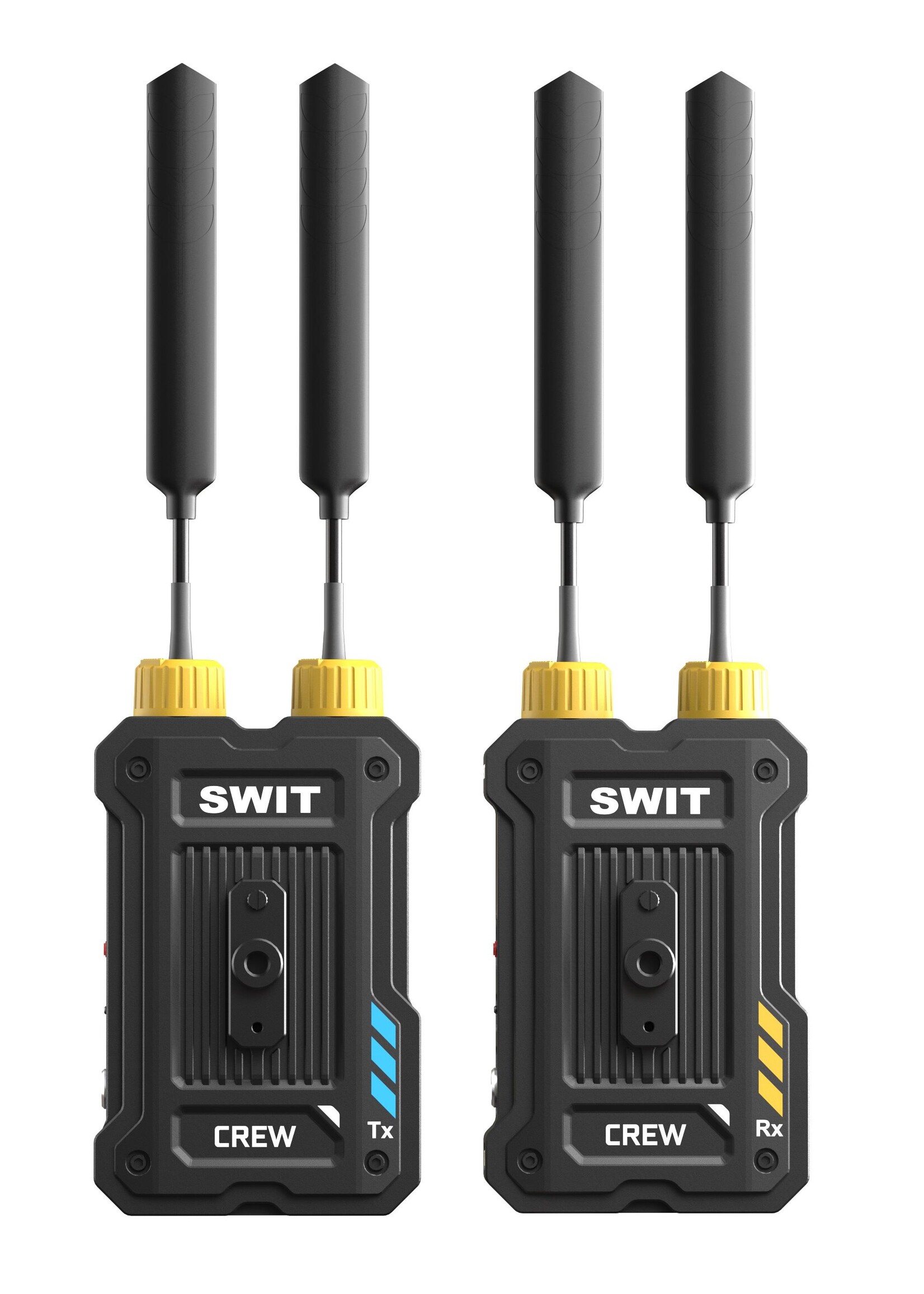

CREW 1.2km/4000ft Pro Wireless Video Transmission

› KUWI 2.0 Pro wireless tech, NOT WIFI
› Proprietary anti-interference RF
› 5.1-5.9GHz License-Free DFS Comply
› Auto scan and select optimal channel
› 3GSDI & HDMI® HD video transmission
› 1.2km / 4000ft (Line-of-Sight) distance
› USB-C Video Capture out for PC/Mac
› H.265 up to 26.8Mbps visual lossless
› Consistent 32ms ultra low latenty
› Uncompromised 1T to 4R Multicast
› MetaData & TC trigger transmission
› High bright OLED display & configuration
› AES-256 dual encryption protection
› NP-F / 2-pin LEMO / USB-C Power Supply

Input / Output

Transmitter	SDI input×1, loop output ×1
	HDMI® input×1
Receiver	SDI output×2
	HDMI® output ×1
	USB-C Video capture output ×1

Video Formats

SDI / HDMI®	1080p60, 1080p59.94, 1080p50
	1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
	1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30
	1080i60, 1080i59.94, 1080i50;
	720p60, 720p59.94, 720p50
Compression	H.265 up to 26.8M bit-rate
Embedded Audio	2-ch
Metadata	Yes
Timecode & Trigger	Yes

Wireless

Frequency	5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules	OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power	23dbm
Distance	1.2km / 4000ft (Line of sight)
Latency	32ms
Multicast	1 Tx up to 4 Rx
Encryption	AES-256

Power

Battery Plate	Tx & Rx: NP-F type
DC Input	Tx & Rx: 2-pin LEMO 7-17V
USB-C Input	Tx: 9V/2A; Rx: 5V/2A
Power Consumption	Tx: 16W, Rx: 6W

General

Environmental	-10°C to 40°C
Dimension	Tx & Rx: 130×80×36.7mm
Weight	Net: Tx:333g, Rx: 334g
